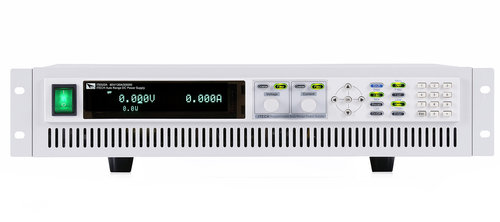

ITECH IT6525C 3000 W DC power supply 500 V, 20 A

additional images:

DC Output Ratings:

  • Maximum 3000 W
  • Maximum Output voltage: 0-500 V
  • Resolution: 100 mV
  • Current: 0-20 A
  • Resolution: 10 mA
  • Ripple: <500 mVpp

Setup Accuracy:

  • Voltage: <0.05% + 200 mV
  • Current: <0.2% + 20 mA

Feature set:

  • Intilligent fan control. Low acoustic noise
  • Current sink with dissipater unit
  • Two-quadrant current output
  • Up/down time < 3 ms
  • List mode programming
  • Slew rate setting
  • Accurate readback of current and voltage
  • CV/CC/CP mode
  • Variable output impedance
  • Built-in DIN 40839 and ISO-16750-2 standard voltage curve
  • Solar panel I-V curve simulation function
  • Remote sense
  • Master/Slave mode for more units in parallel
  • Extensive protection
  • High accuracy and resolution

Connectivity:

  • LAN, RS-232, RS-484, USB and CAN
  • Analog control interfaces
  • SCPI command set

Product Number:

IT6525C

Manufacturer:

ITECH

Quantity:

Total
Unit price
base price
Stock
Call or email for delivery time

IT6500 series offers a full-featured high-performance power test solution. With fast response, these DC power supplies provide users with a new level of power supply performance. From 800 W to 30 kW, the whole series include more than 100 models. The maximum output voltage and current is up to 1000 V and 1200 A respectively. With its auto ranging capability, it also has a super wide range of voltage and current applications. Users can choose the power supply that fits their testing requirements perfectly.

IT6502D/IT6512/IT6512A

Good performance and compact size, designed for general purpose testing in R&D and production.

IT6500C series

Seamless two quadrant operation, multi-functional and with fast response. Designed for continuous source and sink testing requirements. Useful for solar panel IV simulation, DC motors and battery test.

Variable output impedance and slew rate settings.

IT6500D series

High performance with stable output, designed for automobile, green energy, high speed testing, high-power testing etc.
