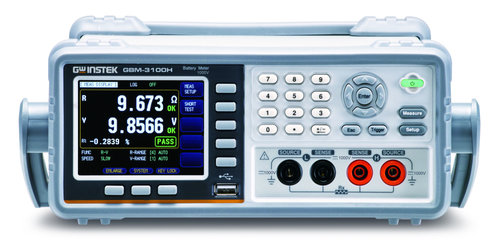

GW-INSTEK GBM-3100H Battery Meter (1000 V)
Key Features and Functions
- Measurement items: DC voltage and AC resistance
- Voltage measurement: 1000V (GBM-3100H), 300V (GBM-3300) and 80V (GBM-3080)
- Resistance measurement: 0mΩ~ 3.2kΩ(max.)
- Basic accuracy for voltage measurement: 0.01%
- Basic accuracy for resistance measurement: 0.5%
- Measurement resolution up to 0.1μΩ and 10μV, suitable for single-cell measurement
- Independent GO/NOGO determination function for voltage and resistance respectively
- The judgment mechanism of test lead (probe) disconnect/contact failure is to ensure the measurement reliability
- 3.5’ TFT LCD (320x240)
- Standard interfaces: USB host/device, RS-232C and Handler
Documents and Software Solutions:
Product Highlights
The GBM-3000 series, which uses AC 1kHz as the test signal and measures battery’s voltage and internal resistance to 1000V (GBM-3100H), 300V (GBM-3300) and 80V (GBM-3080). The series features 3.5' TFT LCD, 4-wire measurement method, high-resolution (6-digit voltage / 5-digit resistance) measurement display capability, and independent GO/NOGO determination of voltage and resistance, various communications interfaces, etc. to meet various types of battery measurements, ranging from single cell, battery cell, to the end product, etc. so as to facilitate users in achieving accurate measurements at all stages of production.
The GBM-3100H provides measurement capabilities up to 1000V DC voltage which is suitable for measurement of EV and PHEV battery packs.
Product Highlights
The GBM-3000 series, which uses AC 1kHz as the test signal and measures battery’s voltage and internal resistance to 1000V (GBM-3100H), 300V (GBM-3300) and 80V (GBM-3080). The series features 3.5' TFT LCD, 4-wire measurement method, high-resolution (6-digit voltage / 5-digit resistance) measurement display capability, and independent GO/NOGO determination of voltage and resistance, various communications interfaces, etc. to meet various types of battery measurements, ranging from single cell, battery cell, to the end product, etc. so as to facilitate users in achieving accurate measurements at all stages of production.
The GBM-3100H provides measurement capabilities up to 1000V DC voltage which is suitable for measurement of EV and PHEV battery packs.
