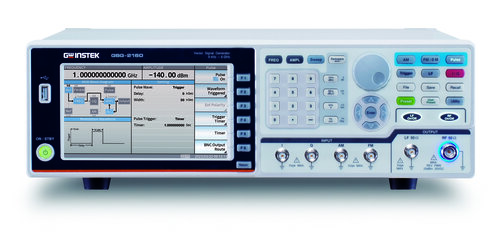

GW-INSTEK GSG-2060 6 GHz RF Signal Generator (OCXO timebase and GPIB Interface included)
Key Features and Functions
- Frequency Range : 9 kHz - 6 GHz
- Frequency Resolution : 1 mHz
- Frequency Stability:
- 10ppm, 2 ppm/year Aging Rate.
- OCXO Time base: 10 ppb Frequency Stability with 0.1 ppm/Year Aging Rate
- Amplitude Range: -140 dBm to +20 dBm
- Amplitude Setting Resolution: 0.01dBm
- Amplitude Units: dBm, dBμV, Vrms
- Phase Noise: <-117dBc/Hz (Typical) @1 GHz output and 20 kHz Offset
- Frequency/Amplitude Switching Speed: <5ms
- Built-in LF Output and Pulse Output
- Modulation:
- Built-in in AM, FM, PM Analog Modulation
- Interfaces:
- Standard: USB and LAN
- Optional: GPIB
- SCPI Command Standard
Documents and Software Solutions:
The GSG-2000 series is a basic RF vector signal/signal generator. that covers a frequency range from 9 kHz to 6GHz. It is suitable for applications in communications education, RF component testing (such as amplifiers, antennas, and filters), automotive electronic signal testing, and IoT applications. It meets the testing requirements of RF products during production and development stages.
The GSG-2000 series offers superior specifications including a wide amplitude output range of +20 dBm to -140 dBm, lower phase noise of -117 dBc/Hz, and high frequency accuracy with 10 ppm frequency stability and 2 ppm aging rate. Users have the option to enhance frequency stability and aging rate by selecting the OCXO (Oven Controlled Crystal Oscillator) option, which provides 10ppb stability and 0.1 ppm aging rate.
The entire series has built-in AM, FM, and PM analog modulation, and GSG-2160 features a digital signal modulation function with a maximum bandwidth of 60MHz digital signal output, supporting ASK, PSK, APSK, QAM, FSK, MSK, User defined IQ, User-defined FSK modulation signals.
Furthermore, the GSG-2000 series provides LF signal and Pulse signal output. The LF signal allows users to output Sine, Square, Triangle/Ramp, Gaussian Noise signals, and the Pulse signal output can simulate pulse wave applications of various widths. In addition to the above signal outputs, GSG-2000 also provides AM/FM/digital IQ signal input, as well as independent output ports for digital I or Q signals.
The GSG-2000 series is a basic RF vector signal/signal generator. that covers a frequency range from 9 kHz to 6GHz. It is suitable for applications in communications education, RF component testing (such as amplifiers, antennas, and filters), automotive electronic signal testing, and IoT applications. It meets the testing requirements of RF products during production and development stages.
The GSG-2000 series offers superior specifications including a wide amplitude output range of +20 dBm to -140 dBm, lower phase noise of -117 dBc/Hz, and high frequency accuracy with 10 ppm frequency stability and 2 ppm aging rate. Users have the option to enhance frequency stability and aging rate by selecting the OCXO (Oven Controlled Crystal Oscillator) option, which provides 10ppb stability and 0.1 ppm aging rate.
The entire series has built-in AM, FM, and PM analog modulation, and GSG-2160 features a digital signal modulation function with a maximum bandwidth of 60MHz digital signal output, supporting ASK, PSK, APSK, QAM, FSK, MSK, User defined IQ, User-defined FSK modulation signals.
Furthermore, the GSG-2000 series provides LF signal and Pulse signal output. The LF signal allows users to output Sine, Square, Triangle/Ramp, Gaussian Noise signals, and the Pulse signal output can simulate pulse wave applications of various widths. In addition to the above signal outputs, GSG-2000 also provides AM/FM/digital IQ signal input, as well as independent output ports for digital I or Q signals.
