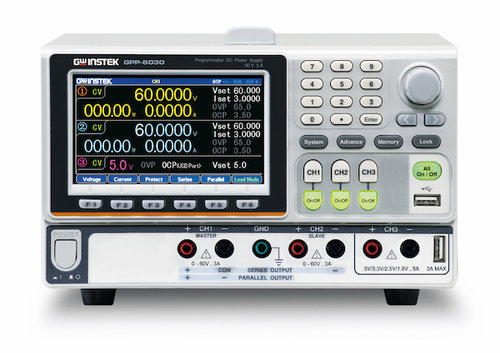

GW-INSTEK GPP-6030 385 W three-channel programmable DC power supply. 0-60 V/0-3A, 0-60 V/0-3A, 1.8 V/2.5 V/3.3V/5 V-5 A

Key Features and Functions

  • 4.3”TFT LCD Display
  • Setting resolution: 1mV / 0.1mA; read back resolution: 0.1mV / 0.1mA
  • Low ripple noise: <1mVrms/ <2mArms
  • Transient response time: <100µS
  • Load function (CC, CV, CR mode)
  • Tracking series and parallel function without additional external wiring
  • Utilizing hardware to realize over voltage protection / over current protection / over temperature protection
  • Delay function / output monitoring function / output recorder function
  • Supports setting value, measurement value and output waveform display
  • Sequential output function and built-in 8 template waveforms
  • The output recorder function records the output voltage & current parameters with a minimum recording interval of 1 second.
  • Provides 10 sets of memory for each sequence/delay/recorder/panel setting condition
  • GPP-3060/6030 supports a USB (Type A) output terminal
  • Intelligent temperature control fan effectively reduces noise
  • Standard: RS-232, USB, LAN, Ext I/O ; Optional(manufacturer installed only): GPIB

Documents and Software Solutions:

Price

kr 7.656*
* excluding VAT free shipping (Denmark)

Product Number:

GW-GPP-6030L

Manufacturer:

GW-INSTEK

Quantity:

Total
Unit price
base price
Stock
Typically on stock
Quick delivery

GPP-3060, GPP-3650 and GPP-6030 three-channel programmable DC power supplies are extension models of the GPP-X323 series.

Specifications

Model NumberNumber of OutputMax. PowerCH1CH2CH3Interface(Std.)Interface(Opt.)
GPP-30603385 W0-30 V/0-6 A0-30 V/0-6 A1.8 V/2.5 V/3.3 V/5 V;5 AUSB, RS-232, LANGPIB
GPP-36503385 W0-36 V/0-5 A0-36 V/0-5 A1.8 V/2.5 V/3.3 V/5 V;5 AUSB, RS-232, LANGPIB
GPP-60303385 W0-60 V/0-3 A0-60 V/0-3 A1.8 V/2.5 V/3.3 V/5 V;5 AUSB, RS-232, LANGPIB

GPP-3060/6030/3650 inherit the high program resolution (1 mV/0.1 mA) and read back resolution (0.1mV/0.1mA) of the GPP series with low-ripple noise characteristics ?1 mVrms/?2 mArms and ?100 µs output transient recovery ability. An independent output on-off switch is provided for each channel.

The unique load function of the GPP series can arbitrarily set CH1/CH2 as power supply or load function. For example, one channel is set as power output, and the other channel is set as load function to consume the power of the DUT to satisfy simple battery charging and discharging or load characteristic test by a single power supply.

Applications

  • Scientific research and experimental testing
  • Battery charging and discharging test
  • Electronic parts test
  • 3C electronic product test
Description
Additional Informations
Reviews
Query on the Item
Do you have any questions on this item?
Your E-mail Address
My Question:
Please retype the letters shown here
captcha
Description
Reviews
Query on the Item

GPP-3060, GPP-3650 and GPP-6030 three-channel programmable DC power supplies are extension models of the GPP-X323 series.

Specifications

Model NumberNumber of OutputMax. PowerCH1CH2CH3Interface(Std.)Interface(Opt.)
GPP-30603385 W0-30 V/0-6 A0-30 V/0-6 A1.8 V/2.5 V/3.3 V/5 V;5 AUSB, RS-232, LANGPIB
GPP-36503385 W0-36 V/0-5 A0-36 V/0-5 A1.8 V/2.5 V/3.3 V/5 V;5 AUSB, RS-232, LANGPIB
GPP-60303385 W0-60 V/0-3 A0-60 V/0-3 A1.8 V/2.5 V/3.3 V/5 V;5 AUSB, RS-232, LANGPIB

GPP-3060/6030/3650 inherit the high program resolution (1 mV/0.1 mA) and read back resolution (0.1mV/0.1mA) of the GPP series with low-ripple noise characteristics ?1 mVrms/?2 mArms and ?100 µs output transient recovery ability. An independent output on-off switch is provided for each channel.

The unique load function of the GPP series can arbitrarily set CH1/CH2 as power supply or load function. For example, one channel is set as power output, and the other channel is set as load function to consume the power of the DUT to satisfy simple battery charging and discharging or load characteristic test by a single power supply.

Applications

  • Scientific research and experimental testing
  • Battery charging and discharging test
  • Electronic parts test
  • 3C electronic product test
