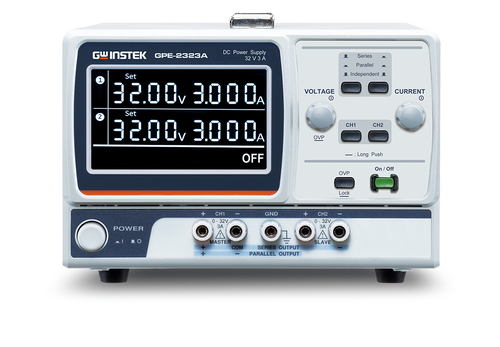

GW-INSTEK GPE-2323A 192W, 2-Channel, 0-32 V, 0-3A Linear D.C. Power Supply
Key Features and Functions
- 2, 3 or 4 Independent Isolated Output
- 4.3' LCD Display
- Recovery Time?≤ 100 µs (50 % load change, minimum load 0.5 A)
- Setting & Readback Resolution 10 mV / 1 mA
- Output ON/OFF
- Analog Control (Remote I/O) for Output ON / OFF
- Key Lock Function
- Tracking series and parallel operation
- Optional European Jack Type Terminal
Documents and Software Solutions:
The GPE-X323A series DC power supply is the latest iteration of the GPE-X323 series, building upon its proven quality and reputation. This upgraded model refines precision with an encoder switch for more accurate voltage and current adjustments. Additionally, the digital control system has been streamlined—reducing six rotary knobs to just two—enhancing the front panel’s simplicity and ease of operation.
A key improvement in this iteration is the overvoltage protection (OVP). Unlike the previous GPE series, which relied on a single maximum voltage threshold for activation, the new A series allows independent OVP voltage settings for each channel: CH1/CH2?1 V to 36 V?CH3?5.5 V (GPE-3323A)?1 V to 6 V (GPE-4323A)?CH4?1 V to 16 V (GPE-4323A).
These refinements make the A series a more flexible and precise for multi-channel applications.
Common features of GPE-X323A and GPE-X323 series
- The X in X323 can be 2/3/4, representing dual-channel, triple-channel, or quad-channel.
- Output power from 192 watts to 217 watts
- High Resolution
- Low Noise
- Voltage Recovery Time?≤ 100 µs (50 % load change, minimum load 0.5 A)
- Key Lock Function
The GPE-X323A series DC power supply is the latest iteration of the GPE-X323 series, building upon its proven quality and reputation. This upgraded model refines precision with an encoder switch for more accurate voltage and current adjustments. Additionally, the digital control system has been streamlined—reducing six rotary knobs to just two—enhancing the front panel’s simplicity and ease of operation.
A key improvement in this iteration is the overvoltage protection (OVP). Unlike the previous GPE series, which relied on a single maximum voltage threshold for activation, the new A series allows independent OVP voltage settings for each channel: CH1/CH2?1 V to 36 V?CH3?5.5 V (GPE-3323A)?1 V to 6 V (GPE-4323A)?CH4?1 V to 16 V (GPE-4323A).
These refinements make the A series a more flexible and precise for multi-channel applications.
