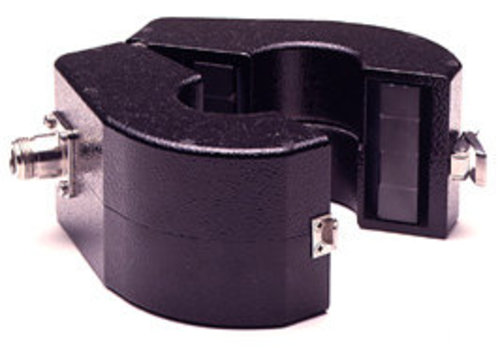

ETS-94111-1 Current Probe

Key Features

  • For Standards Testing and Pre-compliance Applications
  • Measures RF Current Without Direct Connection

Electrical Specifications

  • Frequency Minimum: 1 MHz
  • Frequency Maximum: 1000 MHz
  • Load Impedance: 50 +/- j0
  • Maximum Primary Current Amps:
    • 400 Hz: 200
    • DC-60 Hz: 200
    • Pulse: 50
    • RF(CW): 20
  • Transfer Impedance: 1 to 10 Ω

Physical Specifications

  • Outside Diameter: 8.26 cm
  • Window Diameter: 3.18 cm
  • Width: 3.56 cm
  • Weight: 0.43 kg

Product Number:

ETS-94111-1

Quantity:

Total
Unit price
base price
Stock
Call or email for delivery time
The 94111-Series is part of a state of the art attempt to provide test equipment capable of making bulk current injection measurements up to 1 GHz, vs, the present range of 400 MHz. The present 400 MHz range represents the capability of equipment at the time these standards were formulated. Another application of an extended range probe such as the 94111-Series is as a diagnostic tool searching for cable common mode current sources of radiated emissions, and as measurement of cable common mode coupled currents during radiated susceptibility testing. The different -X models have different wc and pulsed RF current sensitivity and measurement range.The 3.18 cm (1.25 in) window makes the Model 94111-Series probe suitable for measurements on most power cables (AWG 4/0 cable, good for several hundred Amps, is 12.7 mm (0.5 in) diameter, exclusive of insulation). Probe saturation current is compatible with the current carrying capacity of wires placed in its window.
