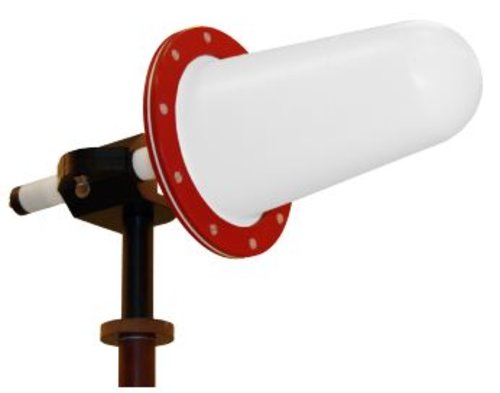

ETS-3184 Broadband Mini-Bicon Antenna (1 - 18 GHz)

1 GHz - 18 GHz Frequency Range

Omnidirectional Radiation Pattern

Ideal for:

  • Broadband Spectrum Monitoring
  • Harmonics Level Measurement IEC 61000-4-3
  • Weatherizing Kit

Electrical Specifications

  • Frequency Minimum 1 GHz
  • Frequency Maximum 18 GHz
  • Pattern Type Omnidirectional
  • Polarization Linear
  • VSWR Ratio (AVG) 2:1
  • Maximum Continuous Power 50 watts @ 1 GHz
  • 25 watts @ 18 GHz
  • Impedance (Nominal) 50 ?
  • Connectors SMA (F)

Physical Specifications

  • Length 36.2 cm
  • Width 15.25 cm
  • Stinger Length 17.8 cm
  • Weight 0.7 kg

Product Number:

ETS-3184

Quantity:

Total
Unit price
base price
Stock
Call or email for delivery time
The ETS-Lindgren Model 3184 Broadband Mini-Bicon Antenna is a radome-protected, broadband antenna with a frequency range of 1 GHz - 18 GHz. Its omnidirectional pattern and broadband frequency range make it ideal for surveying or spectrum monitoring, when used with a portable spectrum analyzer.A weatherizing kit is standard on the Model 3184 for prolonged outdor monitoring.FEATURESFrequency RangeThe Model 3184 is designed to have the lowest possible VSWR across its range of operation. The antenna exhibits an average 2:1 VSWR.Radiation PatternThe radiation pattern of the Model 3184 is omnidirectional in the H-plane. This means the antenna can receive signals from every direction around its axis.Spectrum MonitoringThe Model 3184 can be used for EM Field surveying and spectrum monitoring. The low weight design allows use as a field surveying tool, in conjunction with a portable spectrum analyzer.IEC-61000-4-3Because of its small size, the antenna can also be used for amplifier harmonic measurements per the IEC 61000-4-3 Radiated Immunity Test.
