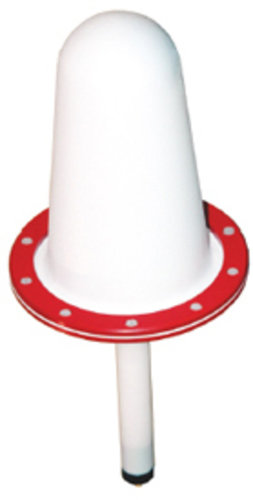

ETS-3181 Broadband Mini-Bicon Antenna (500 MHz - 18 GHz)

500 MHz - 18 GHz Frequency Range. (The antennas is recommended for the 500 MHz to 9 GHz range but that data is supplied up to 18 GHz where it can be used for spectrum monitoring).

Radiation Pattern Conforms to CISPR-16 Specifications

Ideal for:



  • Chamber Characterization
  • Broadband Spectrum Monitoring
  • Omni-directional Pattern Conforms with CISPR-16



Electrical Specifications

  • Frequency Minimum 500 MHz
  • Frequency Maximum 18 GHz
  • Connectors SMA (F)
  • Impedance (Nominal) 50 ?
  • Maximum Continuous Power 200 watts @ 500 MHz
  • 25 watts @ 18 GHz
  • Pattern Type Omnidirectional
  • Polarization Linear
  • VSWR Ratio (AVG) <2:1

Physical Specifications

  • Length 36.2 cm
  • Width 15.25 cm
  • Stinger Length 17.8 cm

Product Number:

ETS-3181

Quantity:

Total
Unit price
base price
Stock
Call or email for delivery time
The Model 3181 is a broadband 500 MHz - 9GHz (18 GHz) omnidirectional antenna with a radiation pattern that conforms to the CISPR-16 specifications. The Model 3181’s frequency range covers most wireless bands worldwide, it can also be used for surveying or spectrum monitoring when used with a portable spectrum analyzer.FEATURESFrequency RangeThe Model 3181 as designed to have the lowest possible VSWR across its range of operation. The antenna exhibits better than 2:1 VSWR for most of its range, and never exceeds 4:1 above 1 GHz.Radiation PatternThe radiation pattern of the Model 3181 is omnidirectional in the H-plane. This means the antenna can receive signals from every direction around its axis.Spectrum MonitoringThe Model 3181 can be used for EM Field surveying and spectrum monitoring. Its low weight design allows for use as a surveying tool, when connected to a portable spectrum analyzer. Optional weatherproofing is available for long term monitoring outdoors.
