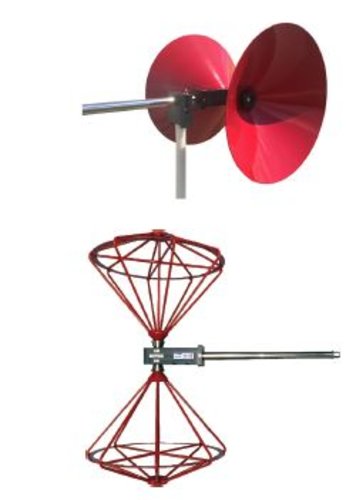

ETS-3180 Broadband Mini-Bicon Antenna (30 MHz - 3 GHz)
Frequency Range:
- Cage Elements: 30 MHz to 1 GHz
- Cone Elements: 30 MHz to 3 GHz
Conical elements also available as solid elements. Performance is unaffected. These elements are 2.54 cm (1 in.) shorter, 1.27 com (.5 in.) inch wider, and slightly lighter then the standard conical elements.
Ideal for:
- Chamber Characterization
- Broadband Spectrum Monitoring
- Field Measurement
- Flexible Configuration
Technical Specifications (Model 3180C with Cage Elements)
Electrical
- Frequency Minimum 30 MHz
- Frequency Maximum 1 GHz
- Connectors Type N (f)
- Nominal Impedance 50 Ohms
- Maximum Continuous Power 250 mW
- Pattern Type Omni-directional
- Polarization Linear
- VSWR (Average) -3.1
Physical
- Length 72.16 cm
- Height 40.00 cm
- Width 40.00 cm
Technical Specifications (Model 3180C with Cone Elements)
Electrical:
- Frequency Minimum 30 MHz
- Frequency Maximum 3 GHz
- Connectors Type N (f)
- Nominal Impedance 50 Ohms
- Maximum Continuous Power 250 mW
- Pattern Type Omni-directional
- Polarization Linear
- VSWR (Average) -3:1
Physical:
- Length 60.45 cm
- Height 16.50 cm
- Width 30.07 cm
Stock
Call or email for delivery time
ETS-Lindgrens Model 3180C Broadband Mini-Bicon Antenna has been designed for optimal performance across the frequency range of 30 MHz to 1 GHz (cage elements) and 30 MHz to 3 GHz (cone elements). The Model 3180Cs uniquely designed elements provide a omni-directional pattern, without the beam splitting.The Model 3180C is ideal for the free space NSA (FSNSA) test for fully anechoic rooms. Its small size allows for harmonic monitoring when testing per the IEC 61000-4-3.Frequency RangeThe Model 3180C covers the traditional frequency range for EMC measurements and covers all of the VHF and UHF bands, making it ideal for spectrum monitoring of FM, TV and some cellular phones. With the small cone elements in place, the 3180C can be used up to 3 GHz.Flexible Mounting SystemThe Model 3180C antenna includes both an EMCO block mount and a rear stinger mount for flexible mounting.Radiation PatternThe Model 3180C has been designed to have a radiation pattern that is omnidirectional. The elements have been optimized to avoid any splitting of the main radiation beam in the elevation cut.
