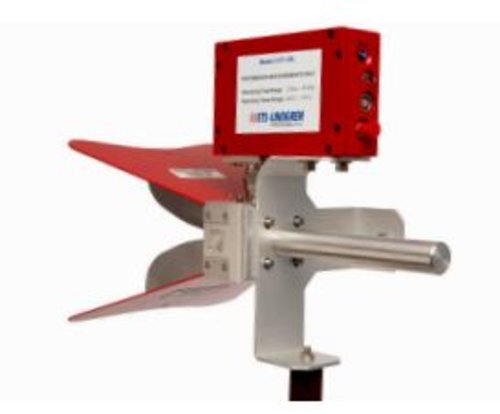

ETS-3117-PB Double-Ridged Waveguide Horn with Pre-Amplifier (1 - 18 Ghz)
Key Features
- 1 GHz to 18 GHz Frequency Range
- Maintains Single Lobe Radiation
- Fitted with Pre-Amplifier for Increased Sensitivity
- Extremely Low AF
- Flexible Mounting
- Not intended for RSE Testing of Intentional Radiators
Product Features
Frequency Range
This antenna covers the 1 GHz to 18 GHz range, making it ideal as a receive antenna for any emissions testing above 1 GHz.
Maintains Single Lobe Radiation
Like the model 3117, the model 3117-PB maintains a single main lobe pattern in the direction of the horn axis over its frequency range. This characteristic is essential for even distribution of electromagnetic energy on a target surface, and accurate measurement of gain and emissions. The model 3117s unique design suppresses the propagation of high order modes. The result is an antenna with a well-defined single lobe radiation pattern that outperforms other antennas in its class.
Fitted Amplifier
The pre-amplifier attached to the antenna has a frequency range of 1 GHz to 18 GHz and a typical gain of 28 dB. The gain flatness across the range is 2.5 dB. The pre-amplifier has a maximum noise figure of 4 dB maximum with the typical noise figure being 3 dB. The power output is +17 dB minimum at the 1 dB point. The input and output characteristics of the pre-amplifier are an input and output VSWR of 2: 1 maximum.
Low Antenna Factor
The result of matching the model 3117 with the pre-amplifier is an antenna that is calibrated as a system. This results in a low AF for the entire frequency range.
