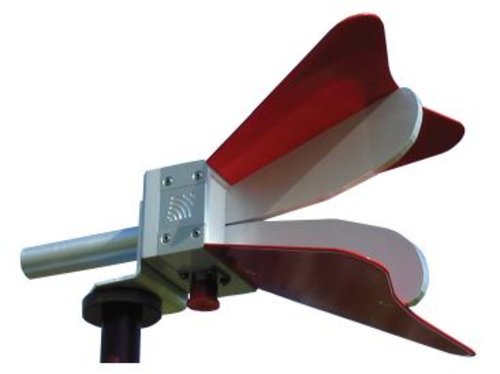

ETS-3117 Double-Ridged Guide Antenna (1 GHz - 18 GHz)
- Ultra Broadband
- 1 GHz to 18 GHz Frequency Range
- 300 W Power Input Capacity
- Optimized High Frequency Gain
- Low VSWR
- Flexible Mounting Configuration
Electrical Specifications
- Frequency Minimum 1 GHz
- Frequency Maximum 18 GHz
- Connectors Type N
- Impedance (Nominal) 50 ?
- Maximum Continuous Power 300 W
- Pattern Type directional
- Peak Power 400 W
- Polarization linear
- VSWR 3.5:1 max
- <2:1 above 1.5 GHz
Physical Specifications
- Depth 17.5 cm + 15.5 cm mount
- 6.9 in + 6.1 in mount
- Height 15.5 cm
- Width 17.5 cm
- Weight 1.13 kg
Stock
Call or email for delivery time
ETS-Lindgrens Model 3117 Double-ridged Waveguide Horn is the latest addition to our family of double-ridged waveguides. This patented antenna (Patent # 6,995,728) corrects the lower gain at the upper end of the frequency range, commonly found in ridged waveguide antennas. Users of this antenna benefit from uniform illumination of target surfaces and accurate gain measurement.In addition, the Model 3117 exhibits high gain and low VSWR across its operational frequency band, accepting moderate power input of 300 W. The electrical characteristics of this antenna were designed and modeled using powerful workstations running electromagnetic simulation software. Equally important, experienced RF engineers worked with our manufacturing team to produce a practical and affordable realization of the modeling process. All production units are individually calibrated at our A2LA accredited lab.ApplicationsFCC-15 (RE)FCC-18 (RE)IEC/CISPR/EN (RE, RI)SAE J1113 (RE, RI)SAE J551 (RE, RI)MIL-STD-461E (RE, RI)MIL-STD-285 (TX, RX)NACSIM (RE)
Description
Additional Informations
Reviews
Query on the Item
Do you have any questions on this item?
Description
Reviews
Query on the Item
ETS-Lindgrens Model 3117 Double-ridged Waveguide Horn is the latest addition to our family of double-ridged waveguides. This patented antenna (Patent # 6,995,728) corrects the lower gain at the upper end of the frequency range, commonly found in ridged waveguide antennas. Users of this antenna benefit from uniform illumination of target surfaces and accurate gain measurement.In addition, the Model 3117 exhibits high gain and low VSWR across its operational frequency band, accepting moderate power input of 300 W. The electrical characteristics of this antenna were designed and modeled using powerful workstations running electromagnetic simulation software. Equally important, experienced RF engineers worked with our manufacturing team to produce a practical and affordable realization of the modeling process. All production units are individually calibrated at our A2LA accredited lab.ApplicationsFCC-15 (RE)FCC-18 (RE)IEC/CISPR/EN (RE, RI)SAE J1113 (RE, RI)SAE J551 (RE, RI)MIL-STD-461E (RE, RI)MIL-STD-285 (TX, RX)NACSIM (RE)
