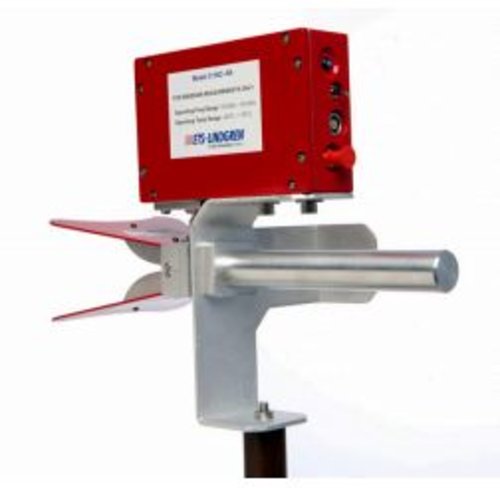

ETS-3116C-PA Double-Ridged Waveguide Horn with Pre-Amplifier (18 - 40 GHz)

  • 18 GHz to 40 GHz Frequency Range
  • Maintains Single Lobe Radiation
  • Fitted with Pre-Amplifier for Increased Sensitivity
  • Extremely Low AF
  • Flexible Mounting

Electrical Specifications

  • Frequency Minimum 18 GHz
  • Polarization linear
  • Frequency Maximum 40 GHz
  • VSWR (Avg) N/A (Rx Only)
  • Maximum Continuous Power N/A (Rx Only)
  • Impedance (Nominal) 50 ?
  • Connector K (2.92 mm, Female)
  • Pattern Type directional

Physical Specifications

  • Length 14.2 cm   (5.59 inches)
  • Width 26.9 cm   (10.59 inches)
  • Height 22.1 cm   (8.70 inches)
  • Weight 1.4 kg   ( 3.09 lb )

Product Number:

ETS-3116C-PA

Quantity:

Total
Unit price
base price
Stock
Call or email for delivery time
ETS-LINDGREN’S MODEL 3116C-PA is a special version of our popular Model 3116C Double-Ridged Waveguide Horn Antenna, fitted with a pre-amplifier package and calibrated as a single unit. By do-ing this, any possible mismatches between antenna and pre-amplifier are taken into account in the anten-na factor (AF), which is provided with this unit. The antenna is ideal as a receive antenna for emissions testing above 18 GHz. Please note, the 3116-PA is not intended for RSE testing of intentional radiators.FEATURESFrequency RangeThis antenna covers the 18 GHz to 40 GHz range when fitted with the pre-amplifier. The range is determined by the pre-amplifier module. The range makes it ideal as a receive antenna for any emissions testing above 18 GHz.Maintains Single Lobe RadiationLike the Model 3116C, the Model 3116C-PA maintains a single main lobe pattern in the direction of the horn axis over its frequency range. This characteristic is essential for even distribution of electromagnetic energy on a target surface, and accurate measurement of gain and emissions.Fitted AmplifierThe pre-amplifier attached to the antenna has a frequency range of 18 GHz to 40 GHz and a typical gain of 35 dB. The gain flatness across the range is ± 3 dB and the noise figure is 3.7 dB. The power output is +8 dB minimum at the 1 dB point. The input and output characteristics of the pre-amplifier are an input and output VSWR of 2.9:1 maximum. The operating temperature ranges from -40°C to +75°C (-40°F to +167°F).Low Antenna FactorThe result of matching the Model 3116C with the pre-amplifier is an antenna that is calibrated as a system and it provides an extremely low AF that is less than 15 dB (1/m) for the entire frequency range. Double-Ridged Waveguide Horn with Pre-Amplifier EMC Antennas Model 3116C-PAFlexible MountingThe Model 3116C-PA includes both a 1/4 20 thread classic mount and a rear “stinger” mount.
