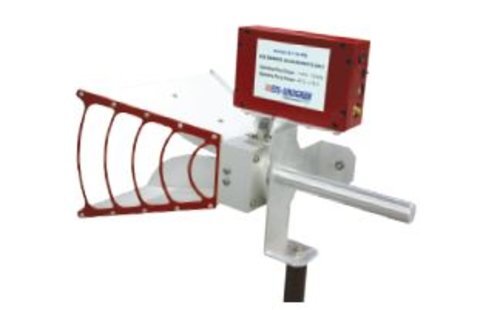

ETS-3115-PB Double-ridged Waveguide Horn with Pre-amplifier (1 - 18 GHz)
Key Features
- 1 GHz - 18 GHz Frequency Range
- Designed per MIL-STD 461
- Fitted with Pre-Amplifier for Increased Sensitivity
- Pre-amp and Antenna Calibrated as a Single Unit
- Extremely Low AF
- Flexible Mounting
Electrical Specifications:
- Frequency Maximum 18 GHz
- Frequency Minimum 1 GHz
- VSWR (Avg) N/A (Rx Only)
- Impedance (Nominal) 50 ?
- Connector SMA (Female)
- Pattern Type directional
- Polarization linear
Physical Specifications:
- Length 36.1 cm
- Width 24.2 cm
- Height 24.8 cm
- Weight 2.5 kg
Product Features
Frequency Range
This antenna covers the 1 GHz to 18 GHz range making it ideal as a receive antenna for any emissions testing above 1 GHz.
Designed for MIL-STD-461
The 3115 Horn Antenna (without pre-amplifier) is identical to the antenna described in MIL-STD-461 RE102, for emissions testing above 1 GHz.
Fitted Amplifier
The pre-amplifier has a frequency range of 1 GHz to 18 GHz and a typical gain of 28 dB. The gain flatness across the range is 2.5 dB. The pre-amplifier has a maximum noise figure of 4 dB maximum with the typical noise figure being 3 dB. The power output is +17 dB minimum at the 1 dB point. The input and output characteristics of the pre-amplifier are an input and output VSWR of 2: 1 maximum.
Calibrated as Single Unit
The 3115-PB is calibrated as a single unit, so uncertainty values are reduced.
Product Features
Frequency Range
This antenna covers the 1 GHz to 18 GHz range making it ideal as a receive antenna for any emissions testing above 1 GHz.
Designed for MIL-STD-461
The 3115 Horn Antenna (without pre-amplifier) is identical to the antenna described in MIL-STD-461 RE102, for emissions testing above 1 GHz.
Fitted Amplifier
The pre-amplifier has a frequency range of 1 GHz to 18 GHz and a typical gain of 28 dB. The gain flatness across the range is 2.5 dB. The pre-amplifier has a maximum noise figure of 4 dB maximum with the typical noise figure being 3 dB. The power output is +17 dB minimum at the 1 dB point. The input and output characteristics of the pre-amplifier are an input and output VSWR of 2: 1 maximum.
Calibrated as Single Unit
The 3115-PB is calibrated as a single unit, so uncertainty values are reduced.
