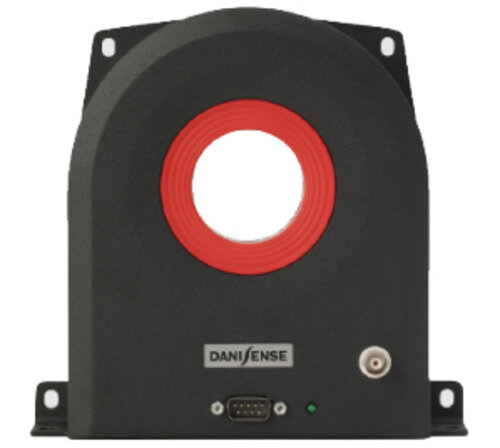

Danisense DM1200ID-CD3000 High precision fluxgate AC/DC current transducer for galvanically isolated measurement up to 1500 A - Calibration winding in DSUB
Key Features and Functions
- 45mm aperture enabling large isolated cables and the possibility to measure leakage current at high precision.
- 3 ppm linearity, 12 ppm offset
- Current output
- Fluxgate, closed loop compensated technology with crystal driven excitation frequency for increased stability
- Access to 3000 turns calibration winding in DSUB
- Possibility to perform 1500A calibration with 500mA source through calibration winding of 3000 turns
- Not suitable for frequencies above 15kHz due to calibration winding
Further information:
Availability:
Call or email for delivery time
Ultra-stable, high precision (ppm class) fluxgate technology DM Series current transducer for non-intrusive, isolated DC and AC current measurement up to 1500A.
Description
Additional Informations
Reviews
Query on the Item
Do you have any questions on this item?
Description
Reviews
Query on the Item
Ultra-stable, high precision (ppm class) fluxgate technology DM Series current transducer for non-intrusive, isolated DC and AC current measurement up to 1500A.
