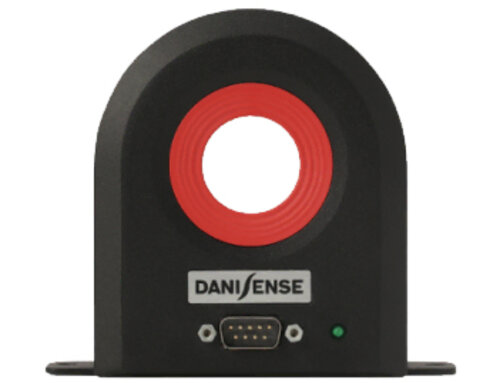

Danisense DS600ID-CD100 Ultra-stable, high precision (ppm class) fluxgate AC/DC current transducer for galvanically isolated measurement up to 1000 A - Calibration winding in DSUB
Key Features and Functions
- Linearity error maximum 1 ppm
- Fluxgate, closed loop compensated technology with fixed excitation frequency and second harmonic zero flux detection for best in class accuracy and stability
- 100 turns calibration winding available in DSUB 9 connector - For up to ±50A test (apply ±500mA to calibration winding).
- Green diode for normal operation indication
- Full aluminum body for superior EMI shielding and extended operating temperature range
- Large aperture Ø27.6mm for cables and bus bars
Further information:
Availability:
Call or email for delivery time
Ultra-stable, high precision (ppm class) fluxgate technology DS Series current transducer for non-intrusive, isolated DC and AC current measurement up to 1000A.
Description
Additional Informations
Reviews
Query on the Item
Do you have any questions on this item?
Description
Reviews
Query on the Item
Ultra-stable, high precision (ppm class) fluxgate technology DS Series current transducer for non-intrusive, isolated DC and AC current measurement up to 1000A.
