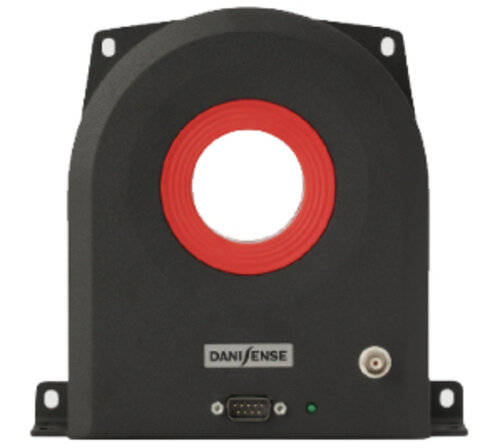

Danisense DM1200UB-10V High precision fluxgate AC/DC current transducer for galvanically isolated measurement up to 1320 A - BNC voltage output
Key Features and Functions
- 850 A rms nominal current
- 10 V output at 1200 A through BNC connector
- Ø45 mm aperture
- 75 ppm total accuracy
- 15 ppm linearity
- 10 ppm offset
- Status signal and LED
Further information:
High precision DC current transducer (DCCT) measuring up to 1320 A currents and continuously measuring 1200 A currents with a linearity error less than 15 ppm.
Based on the ultra stable Danisense closed loop flux gate technology, the DM1200UB-10V has very low offset and ultra low drift.
With an integrated voltage output module (VOM) outputting 10V at 1200 A, the DM1200UB-10V makes current measuring easy.
It provides high resolution for precise monitoring, reliable and consistent performance, and a rugged, full aluminium design for durability.
