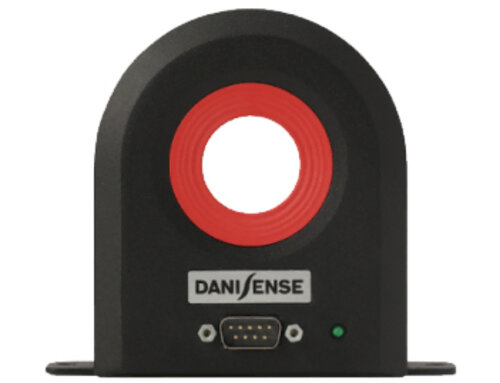

Danisense DS50UB-10V Ultra-stable, high precision (ppm class) fluxgate AC/DC current transducer for galvanically isolated measurement up to 55 A - BNC voltage output
Key Features and Functions
- 36 A rms nominal current
- 10V output at 50 A through BNC connector
- 27.6 mm aperture
- 145 ppm total accuracy
- 5 ppm linearity
- 90 ppm ofset
- Signal status and LED
Further information:
High precision DC current transducer (DCCT) measuring up to 55 A currents and continuously measuring 50 A currents with a linearity error of less than 5 ppm.
Based on the ultra stable Danisense closed loop flux gate technology, the DS50UB-10V has very low offset and ultra low drift.
With an integrated voltage output module (VOM) outputting 10V at 50 A, the DS50UB-10V makes current measuring easy.
It provides high resolution for precise monitoring, reliable and consistent performance, and a rugged, full aluminium design for durability
High precision DC current transducer (DCCT) measuring up to 55 A currents and continuously measuring 50 A currents with a linearity error of less than 5 ppm.
Based on the ultra stable Danisense closed loop flux gate technology, the DS50UB-10V has very low offset and ultra low drift.
With an integrated voltage output module (VOM) outputting 10V at 50 A, the DS50UB-10V makes current measuring easy.
It provides high resolution for precise monitoring, reliable and consistent performance, and a rugged, full aluminium design for durability
