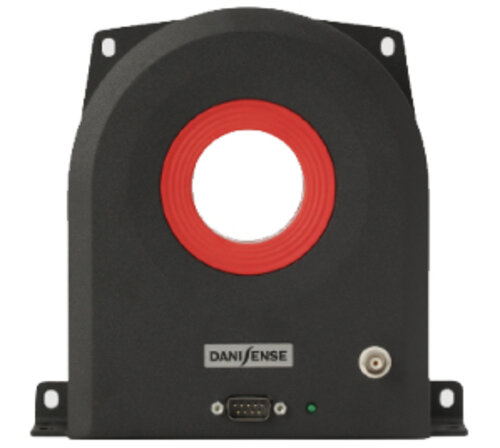

Danisense DL2000UB-10V High precision fluxgate AC/DC current transducer for galvanically isolated measurement up to 2200 A - BNC voltage output
Key Features and Functions
- 1414 A rms nominal current
- 10 V output at 2000 A with BNC connector
- 68 mm aperture
- 108 ppm total accuracy
- 8 ppm offset
- Status signal and LED
Further information:
High precision DC current transducer (DCCT) measuring up to 2200 A currents and continuously measuring 2000 A currents with a linearity error less than 30 ppm.
Based on the ultra stable Danisense closed loop flux gate technology, the DL2000UB-10V has very low offset and ultra low drift.
With an integrated voltage output module (VOM) outputting 10V at 2000 A, the DL2000UB-10V makes high current measuring easy.
It provides high resolution for precise monitoring, reliable and consistent performance, and a rugged, full aluminium design for durability.
High precision DC current transducer (DCCT) measuring up to 2200 A currents and continuously measuring 2000 A currents with a linearity error less than 30 ppm.
Based on the ultra stable Danisense closed loop flux gate technology, the DL2000UB-10V has very low offset and ultra low drift.
With an integrated voltage output module (VOM) outputting 10V at 2000 A, the DL2000UB-10V makes high current measuring easy.
It provides high resolution for precise monitoring, reliable and consistent performance, and a rugged, full aluminium design for durability.
