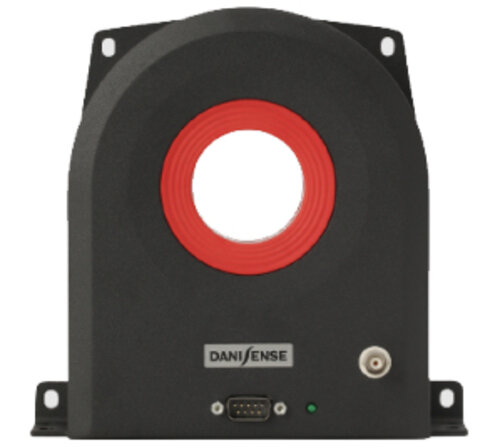

Danisense DL2000UB-1V High precision fluxgate AC/DC current transducer for galvanically isolated measurement up to 3000 A - BNC voltage output
Key Features and Functions
- 2000 A rms nominal current
- 1.5 V output at 3000 A with BNC connector
- 68 mm aperture
- 106 ppm total accuracy
- 6 ppm offset
- Status signal and LED
Further information:
High precision DC current transducer (DCCT) measuring up to 3000 A currents and continuously measuring 3000 A currents with a linearity error less than 80 ppm.
Based on the ultra stable Danisense closed loop flux gate technology, the DL2000UB-1V has very low offset and ultra low drift.
With an integrated high precision burden resistor outputting 1.5 V at 3000 A, the DL2000UB-1V makes high current measuring easy.
It provides high resolution for precise monitoring, reliable and consistent performance, and a rugged, full aluminium design for durability.
High precision DC current transducer (DCCT) measuring up to 3000 A currents and continuously measuring 3000 A currents with a linearity error less than 80 ppm.
Based on the ultra stable Danisense closed loop flux gate technology, the DL2000UB-1V has very low offset and ultra low drift.
With an integrated high precision burden resistor outputting 1.5 V at 3000 A, the DL2000UB-1V makes high current measuring easy.
It provides high resolution for precise monitoring, reliable and consistent performance, and a rugged, full aluminium design for durability.
