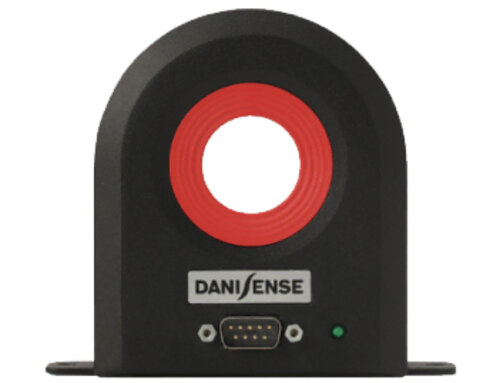

Danisense DS200UB-10V Ultra-stable, high precision (ppm class) fluxgate AC/DC current transducer for galvanically isolated measurement up to 220 A - BNC voltage output
Key Features and Functions
- 140 A rms nominal current
- 10 V output at 200 A through BNC connector
- 27.6 mm aperture
- 82 ppm total accuracy
- 10 ppm linearity
- 22 ppm offset
- Status signal and LED
Further information:
High precision DC current transducer (DCCT) measuring up to 220 A currents and continuously measuring 200 A currents with a linearity error less than 10 ppm.
Based on the ultra stable Danisense closed loop flux gate technology, the DS200UB-10V has very low offset and ultra low drift.
With an integrated voltage output module (VOM) outputting 10V at 200 A, the DS200UB-10V makes current measuring easy.
It provides high resolution for precise monitoring, reliable and consistent performance, and a rugged, full aluminium design for durability
High precision DC current transducer (DCCT) measuring up to 220 A currents and continuously measuring 200 A currents with a linearity error less than 10 ppm.
Based on the ultra stable Danisense closed loop flux gate technology, the DS200UB-10V has very low offset and ultra low drift.
With an integrated voltage output module (VOM) outputting 10V at 200 A, the DS200UB-10V makes current measuring easy.
It provides high resolution for precise monitoring, reliable and consistent performance, and a rugged, full aluminium design for durability
