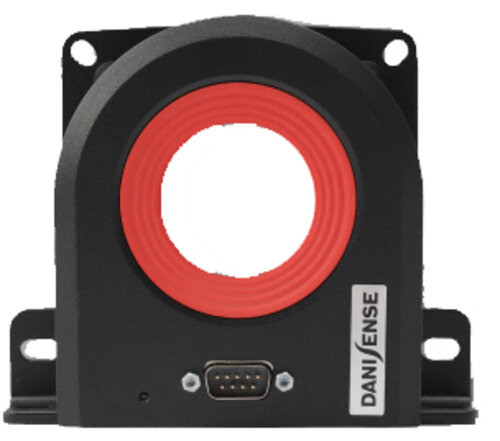

Danisense DN1000ID High precision fluxgate AC/DC current transducer for galvanically isolated measurement up to 1500 A -DSUB current output
Key Features and Functions
- 41.2 mm aperture
- 1 ppm linearity
- 5 ppm offset
- Compact aluminium housing
- Current output
- High stability closed loop fluxgate technology
Further information:
High precision DC current transducer (DCCT) measuring up to 1500 A currents and continuously measuring 1000 A currents with a linearity error less than 1 ppm.
With a large aperture and removable isolation insert allowing wide cable terminals, the DN1000ID has an overrange capability of 1200 A rms up to 30 minutes.
Based on the ultra stable Danisense closed loop flux gate technology, the DN1000ID has very low offset and ultra low drift. Noise is best in class with sub-ppm rms noise in the frequency range up to 10 kHz.
It provides high resolution for precise monitoring, reliable and consistent performance, and a compact and rugged design for easy installation and durability
