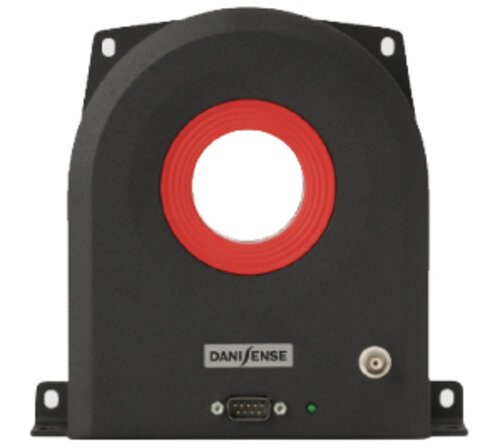

Danisense DM1200ID High precision fluxgate AC/DC current transducer for galvanically isolated measurement up to 1800 A -DSUB current output
Key Features and Functions
- 1200 A rms nominal current
- 1500:1 primary/secondary current ratio
- Current output through D-sub-9 connector
- Ø45 mm aperture
- 6 ppm total accuracy
- 1 ppm linearity
- 5 ppm offset
- Status signal and LED
Further information:
High precision DC current transducer (DCCT) measuring up to 1800 A currents and continuously measuring 1500 A currents with a linearity error less than 1 ppm.
Based on the ultra stable Danisense closed loop flux gate technology, the DM1200ID has very low offset and ultra low drift. With a full aluminium housing it provides high resolution for precise monitoring, reliable and consistent performance, and a rugged design for durability.
High precision DC current transducer (DCCT) measuring up to 1800 A currents and continuously measuring 1500 A currents with a linearity error less than 1 ppm.
Based on the ultra stable Danisense closed loop flux gate technology, the DM1200ID has very low offset and ultra low drift. With a full aluminium housing it provides high resolution for precise monitoring, reliable and consistent performance, and a rugged design for durability.
