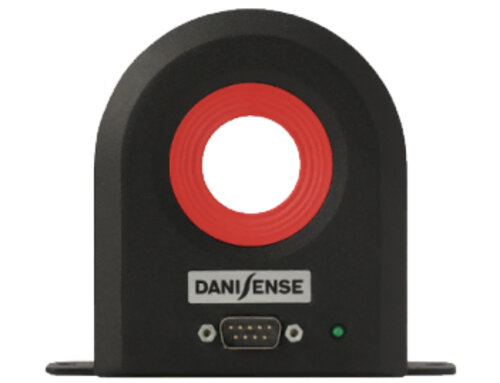

Danisense DS50ID High precision fluxgate AC/DC current transducer for galvanically isolated measurement up to 75 A - DSUB current output
Key Features and Functions
- 50 A rms nominal current
- 500:1 primary/secondary current ratio
- Current output through a D-sub-9 connector
- 27.6 mm aperture
- 61 ppm total accuracy
- 1 ppm linearity
- 60 ppm ofset
- 1 MHz bandwidth (+/- 1 dB)
- Status signal and LED
Further information:
High precision DC current transducer (DCCT) measuring up to 150 A currents and continuously measuring 75 A currents with a linearity error less than 1 ppm.
Based on the ultra stable Danisense closed loop flux gate technology, the DS50ID has very low offset and ultra low drift. It provides high resolution for precise monitoring, reliable and consistent performance, and a rugged design for durability
High precision DC current transducer (DCCT) measuring up to 150 A currents and continuously measuring 75 A currents with a linearity error less than 1 ppm.
Based on the ultra stable Danisense closed loop flux gate technology, the DS50ID has very low offset and ultra low drift. It provides high resolution for precise monitoring, reliable and consistent performance, and a rugged design for durability
