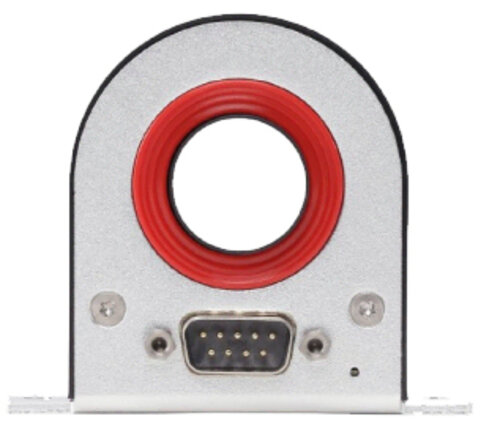

Danisense DT100ID High precision fluxgate AC/DC current transducer for galvanically isolated measurement up to 150 A - DSUB current output
Key Features and Functions
- 20.7 mm aperture
- 1 ppm linearity
- 50 ppm ofset
- Compact housing
- Current output
- High stability closed loop fluxgate technology
Further information:
High precision DC current transducer (DCCT) measuring up to 150 A currents and continuously measuring 100 A currents with a linearity error less than 1 ppm. With a compact size and lightweight design, the DT100ID allows precision current sensing in tight spaces.
Based on the ultra stable Danisense closed loop flux gate technology, the DT100ID has very low offset and ultra low drift. The 2 MHz bandwidth allows high frequency and high precision measurements combined in a convenient package.
It provides high resolution for precise monitoring, reliable and consistent performance, and a compact and rugged design for easy installation and durability
High precision DC current transducer (DCCT) measuring up to 150 A currents and continuously measuring 100 A currents with a linearity error less than 1 ppm. With a compact size and lightweight design, the DT100ID allows precision current sensing in tight spaces.
Based on the ultra stable Danisense closed loop flux gate technology, the DT100ID has very low offset and ultra low drift. The 2 MHz bandwidth allows high frequency and high precision measurements combined in a convenient package.
It provides high resolution for precise monitoring, reliable and consistent performance, and a compact and rugged design for easy installation and durability
