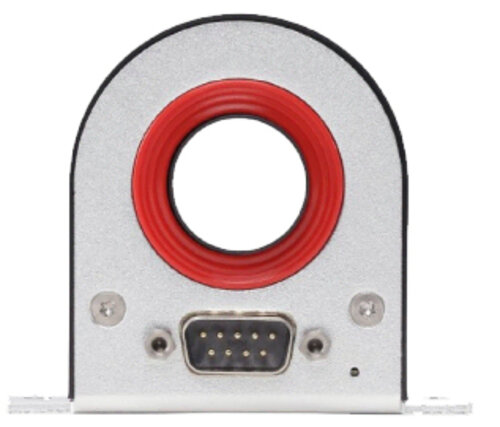

Danisense DT50ID High precision fluxgate AC/DC current transducer for galvanically isolated measurement up to 75 A - DSUB current output
Key Features and Functions
- 20.7 mm aperture
- 1.5 ppm linearity
- 100 ppm ofset
- Compact housing
- Current output
- High stability closed loop fluxgate technology
Further information:
High precision DC current transducer (DCCT) measuring up to 75 A currents and continuously measuring 50 A currents with a linearity error less than 1.5 ppm. With a compact size and lightweight design, the DT50ID allows precision current sensing in tight spaces.
Based on the ultra stable Danisense closed loop flux gate technology, the DT50ID has very low offset and ultra low drift. The 2 MHz bandwidth allows high frequency and high precision measurements combined in a convenient package.
It provides high resolution for precise monitoring, reliable and consistent performance, and a compact and rugged design for easy installation and durability.
High precision DC current transducer (DCCT) measuring up to 75 A currents and continuously measuring 50 A currents with a linearity error less than 1.5 ppm. With a compact size and lightweight design, the DT50ID allows precision current sensing in tight spaces.
Based on the ultra stable Danisense closed loop flux gate technology, the DT50ID has very low offset and ultra low drift. The 2 MHz bandwidth allows high frequency and high precision measurements combined in a convenient package.
It provides high resolution for precise monitoring, reliable and consistent performance, and a compact and rugged design for easy installation and durability.
