Keysight D9040USBC USB4 TX Test Application Software

Key Features & Specifications

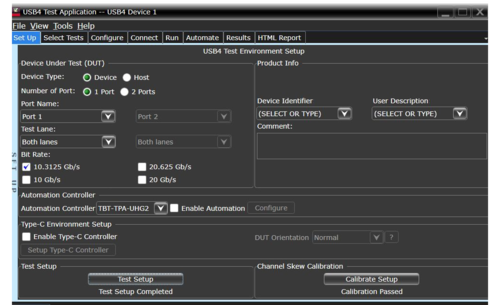

  • Setup wizard for quick setup, configuration and test selection
  • Covers Legacy and Rounded, Gen 2 and Gen 3 rates (10G, 10.3125G, 20G, 20.625G)
  • Automated test setup and execution for ease of use
  • Simultaneous two-lane testing as well as single or dual port
  • Cable and test fixture embedding and de-embedding to provide more accurate margin estimates
  • Test results report generation
  • Pass/fail margin analysis

Description

Use the USB4 Tx software to test, debug and characterize your designs quickly and easily. It automatically configures the oscilloscope for each test and generates an informative HTML report at the end of the test.

Product Number:

D9040USBC

Manufacturer:

Keysight Technologies

Quantity:

Total
Unit price
base price
Stock
Typically on stock
Quick delivery

The Keysight Technologies, Inc. USB4 Transmitter test application provides a fast and easy way to test, debug and characterize your USB4 products. The tests performed by the D9040USBC software are based on the USB4 Compliance Test Specification (CTS). The test application offers a user-friendly setup wizard and a comprehensive report that includes margin analysis. In addition to the automated testing, there is also a Configuration menu that allows customized setups including different cable models and jitter setups.

Comprehensive Test Coverage

The USB4 test application automatically configures the oscilloscope for each test and provides results which include margin and statistical analysis. The tests coverage includes electrical, timing and eye diagram tests as stated in the USB4 specification and the CTS. The signal is optimized for most accurate test result and measurement repeatability.
