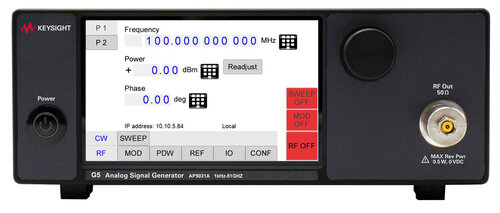

Keysight AP5031A G5 Analog signal generator, up to 51 GHz
Key Features and Functions
The Keysight AP5031A analog signal generator combines ultra-low phase noise with ultra-fast switching speed to set new standards for RF and microwave testing.
- Agile signals with switching speed as fast as 3 µs (typ)
- Get pure signal quality with low SSB phase noise (-135 dBc/Hz typ. at 10 GHz 10 kHz offset)
- Achieve excellent frequency accuracy with high-stability OCXO reference
- Utilize a wide range of external references, including the commonly used 10 and 100 MHz, for higher phase synchronization
- Test with AM, FM, PM and pulse modulation
- Enable excellent phase synchronization among the outputs of multiple instruments via high-frequency CLK ports
- Leverage USB, LAN, or GPIB communication interface options
- implement control seamlessly with a customer-supplied application programming interface
Additional documentation:
Highlights
Combine ultra-low phase noise with ultra-fast switching speed
Set new standards for your RF and microwave testing with the extremely low phase noise and ultra-fast switching offered by the AP5031A analog signal generator. With models ranging in frequency from 1 kHz to 12.75, 20, 40 and 51 GHz, the AP5031A combines an intuitive GUI, excellent signal purity and agility with accurate and broad power ranges to enable you to test with confidence
Highlights
Combine ultra-low phase noise with ultra-fast switching speed
Set new standards for your RF and microwave testing with the extremely low phase noise and ultra-fast switching offered by the AP5031A analog signal generator. With models ranging in frequency from 1 kHz to 12.75, 20, 40 and 51 GHz, the AP5031A combines an intuitive GUI, excellent signal purity and agility with accurate and broad power ranges to enable you to test with confidence
