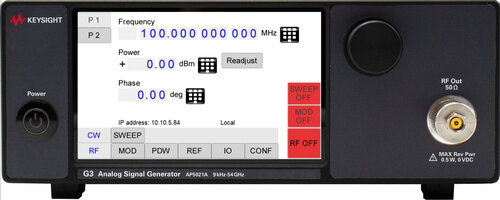

Keysight AP5021A G3 Analog Signal Generator, up to 54 GHz
Key Features and Functions
The Keysight AP5021A G3 analog signal generator is a high-purity, ultra-low phase noise signal generator covering frequencies from 9 kHz to 12.75, 20, 40, or 54 GHz.
- Cover frequency ranges from 9 kHz to 12.75, 20, 40, or 54 GHz
- Get pure signal quality with low SSB phase noise (-126 dBc/Hz typ. at 10 GHz 10 kHz offset)
- Retain value with aging factor of < 20 ppb year
- Generate high-quality harmonics at -50 dBc, spurious X-Band -80 dBc typ.
- Perform extensive tests with advanced pulse modulation ON/OFF 100 dB typ. (rise time 5 ns typ., pulse width 20 ns)
- Boost throughput and accelerate testing with a fast switching speed of 15 μs (typ.)
- Choose from frequency range options including up to 12.75 GHz, 20 GHz, 40 GHz, or 54 GHz
Additional documentation:
Highlights
Accelerate testing with a high-performance desktop signal generator
The Keysight AP5021A G3 analog signal generator provides excellent harmonic and spurious performance in a convenient, lightweight model. A combination of low phase noise, significantly high spectral purity, and fast switching speed allow your testing teams to generate high-quality signals for production, analog-to-digital conversion (ADC), and radar receiver testing. Housed in a convenient desktop enclosure, the G3 analog signal generator also provides touchscreen and remote control configuration options, along with graphic user interface (GUI) software or standard SCPI commands for seamless programming.
