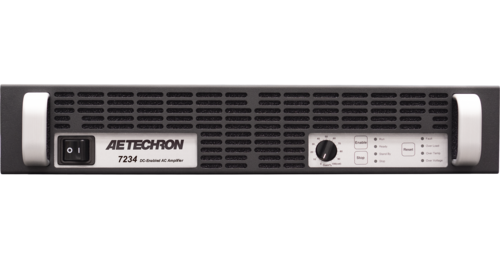

AE-TECHRON 7234 Single-phase, 2U, industrial amplifier/battery simulator

Key Features and Functions

  • Up to 900 W RMS
  • Up to 50 Ap - 158 Vp
  • DC to 250 kHz
  • Single-Phase
  • Drop outs and surges as fast as 2µs
  • Small signal response up to 700 kHz
  • 13.5 VDC at up to 28A
  • Field-selectable ±40V, 75V or 150V potential
  • Bench-sized
  • Powered from 120V/230VAC
  • Source and Sink (4 quadrant)
  • Rugged Design
  • 3-Year, No-Fault Warranty

Documents and Software Solutions:

Price

kr 69.120*
* excluding VAT free shipping (Denmark)

Product Number:

AETECHRON-7234

Manufacturer:

AE-TECHRON

Quantity:

Total
Unit price
base price
Stock
Call or email for delivery time

The 7234 is a capable, versatile, and reliable EMC lab partner.

This powerful amplifier/battery simulator provides up to 28A of long-term DC current with surges of up to 50A and can slew voltages at rates of up to 100V/µs.

It is load-tolerant, able to drive most inductive, capacitive, and resistive loads easily. The feature set of the 7234 allows it to meet or exceed the requirements of 1000+ Automotive and Aviation DC Conducted Susceptibility Standards Tests.

The 7234 is light enough to be hand-carried from one test location to another, rugged enough to tolerate being bounced around on a cart, and able to be powered from standard 120V/230V AC wall power. These features, along with the 7234s powerful performance, make it possible to turn virtually any bench or desk into a competent test location.

Description
Additional Informations
Reviews
Query on the Item?
Do you have any questions on this item?
Your E-mail Address
My Question:
Please retype the letters shown here
captcha
Description
Reviews
Query on the Item?

The 7234 is a capable, versatile, and reliable EMC lab partner.

This powerful amplifier/battery simulator provides up to 28A of long-term DC current with surges of up to 50A and can slew voltages at rates of up to 100V/µs.

It is load-tolerant, able to drive most inductive, capacitive, and resistive loads easily. The feature set of the 7234 allows it to meet or exceed the requirements of 1000+ Automotive and Aviation DC Conducted Susceptibility Standards Tests.

The 7234 is light enough to be hand-carried from one test location to another, rugged enough to tolerate being bounced around on a cart, and able to be powered from standard 120V/230V AC wall power. These features, along with the 7234s powerful performance, make it possible to turn virtually any bench or desk into a competent test location.
