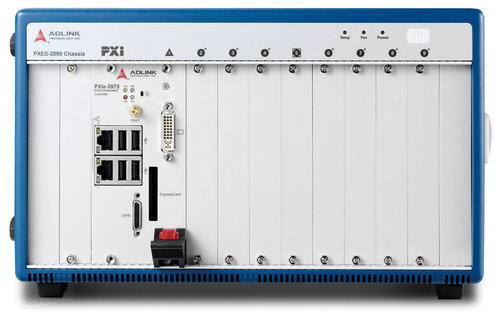

ADLINK-PXES-2590 3U 9-slot PXI Express chassis with all hybrid slots
9-Slot 3U PXI Express Chassis with AC - Up to 7GB/s, All Hybrid
Features
- PXI™-5 PXI Express hardware specification Rev.1.0 compliant
- 9-slot PXI Express chassis with one system slot, one system timing slot, and seven hybrid peripheral slots
- Four-link PXI Express chassis
- Up to 7 GB/s system bandwidth & up to 2 GB/s peripheral bandwidth for all slots
- 0°C to 55°C extended operating temperature range, maximum total usable power is 400 W under 55°C
- Intelligent chassis management: Automatic fan speed control, Chassis status monitoring and reporting & Remote chassis power on/off control
- BNC connectors for 10 MHz clock input/output
- Power, temperature, and fan monitoring LEDs
The ADLINK PXES-2590 is a 9-slot PXI Express chassis equipped with advanced features and functions. Compliant with PXI Express and cPCI Express specifications, the PXES-2590 offers one system slot, one system timing slot, and seven hybrid peripheral slots for versatile test and measurement applications requiring enhanced bandwidth. The hybrid-slot design accepts installation of CompactPCI, PXI, CompactPCI Express, and PXI Express modules into any peripheral slots in PXES-2590, maximizing flexibility. The PXES-2590 is built on a four-link PXI express chassis with 8 GB/s system bandwidth, and 1 GB/s slot bandwidth for all peripheral slots.
The PXES-2590 is implemented with a smart system monitoring controller, reporting full chassis status, including fan speed, system voltages, and internal temperature. Equipped with an industrial grade AC power supply, the PXES-2590 still provides 400 W under 55?XC, and delivers superior cooling capacity, from two 120 mm cooling fans on the rear of the chassis. Two BNC connectors for 10 MHz clock input/output on the rear panel increase chassis flexibility, enabling synchronization with supplementary devices. All in all, PXES-2590 is the best PXI Express platform choice for testing and measurement requirements.
The ADLINK PXES-2590 is a 9-slot PXI Express chassis equipped with advanced features and functions. Compliant with PXI Express and cPCI Express specifications, the PXES-2590 offers one system slot, one system timing slot, and seven hybrid peripheral slots for versatile test and measurement applications requiring enhanced bandwidth. The hybrid-slot design accepts installation of CompactPCI, PXI, CompactPCI Express, and PXI Express modules into any peripheral slots in PXES-2590, maximizing flexibility. The PXES-2590 is built on a four-link PXI express chassis with 8 GB/s system bandwidth, and 1 GB/s slot bandwidth for all peripheral slots.
The PXES-2590 is implemented with a smart system monitoring controller, reporting full chassis status, including fan speed, system voltages, and internal temperature. Equipped with an industrial grade AC power supply, the PXES-2590 still provides 400 W under 55?XC, and delivers superior cooling capacity, from two 120 mm cooling fans on the rear of the chassis. Two BNC connectors for 10 MHz clock input/output on the rear panel increase chassis flexibility, enabling synchronization with supplementary devices. All in all, PXES-2590 is the best PXI Express platform choice for testing and measurement requirements.
