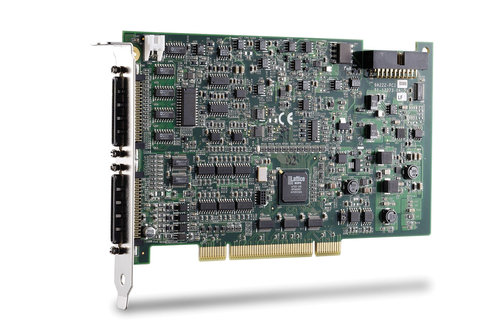

ADLINK PCI-9223 32-CH 16-bit 500 kS/s Multi-Function DAQ Card

Key Features

  • Programmable gains for analog input: ±10V, ±5V, ±2.5V, ±2V, ±1V, ±500mV, ±250mV
  • 2-CH 16-bit simultaneous analog outputs, supporting up to 1 MS/s update rate
  • Programmable function I/O, supporting TTL DIO, 2MHz high-speed DIO, timer/counter, and PWM outputs
  • 2-CH 4 MHz encoder inputs, supporting AB phase, and CW/CCW
  • Dedicated DMA channels for A/D, D/A, and high-speed DIO
  • External digital trigger for A/D, D/A, and high-speed DIO
  • Auto-calibration
  • Recommended for new applications

Product Number:

ADLINK-PCI-9223

Manufacturer:

ADLINK

Quantity:

Total
Unit price
base price
Stock
Call or email for delivery time

The ADLINK PCI-9222/PCI-9223 is a 16-bit, 16/32-CH, 250/500 KS/s high performance DAQ card with 8 different input ranges. It also features 2-CH 16-bit analog outputs capable of a 1 MS/s update rate, 2-CH encoder inputs, and programmable function I/O. The software-programmable function I/O supports a variety of applications, including TTL digital I/O, high-speed DIO, general-purpose timer/counter, pulse generation, and PWM output. Analog input, analog output, and function I/O at full speed simultaneously, and multiple cards can be synchronized through the SSI (System Synchronization Interface) bus if users need more channels than a single board can provide. Ideal for mixed-signal tests, laboratory research, and factory automation, PCI-9222/PCI-9223 is the best single-board solution on the market providing the best integration capability of multiple tasks with high performance and an affordable price.

Description
Additional Informations
Reviews
Query on the Item
Do you have any questions on this item?
Your E-mail Address
My Question:
Please retype the letters shown here
captcha
Description
Reviews
Query on the Item

The ADLINK PCI-9222/PCI-9223 is a 16-bit, 16/32-CH, 250/500 KS/s high performance DAQ card with 8 different input ranges. It also features 2-CH 16-bit analog outputs capable of a 1 MS/s update rate, 2-CH encoder inputs, and programmable function I/O. The software-programmable function I/O supports a variety of applications, including TTL digital I/O, high-speed DIO, general-purpose timer/counter, pulse generation, and PWM output. Analog input, analog output, and function I/O at full speed simultaneously, and multiple cards can be synchronized through the SSI (System Synchronization Interface) bus if users need more channels than a single board can provide. Ideal for mixed-signal tests, laboratory research, and factory automation, PCI-9222/PCI-9223 is the best single-board solution on the market providing the best integration capability of multiple tasks with high performance and an affordable price.
