Key Features and Functions
- Software defined radio architecture of extensibility to future wireless standards
- 4 (or 8) port, parallel, high speed non-signaling test
- Wi-Fi 802.11 ac/ax, a/b/g/n, p/af/ah
- Bluetooth v1.x/v2.x/v3.x/v4.x/v5.1
- Zigbee/Z-Wave/DECT
- User friendly GUI for R&D/QA applications
- API for production automation programming
- Turn-key production automation software support upon request

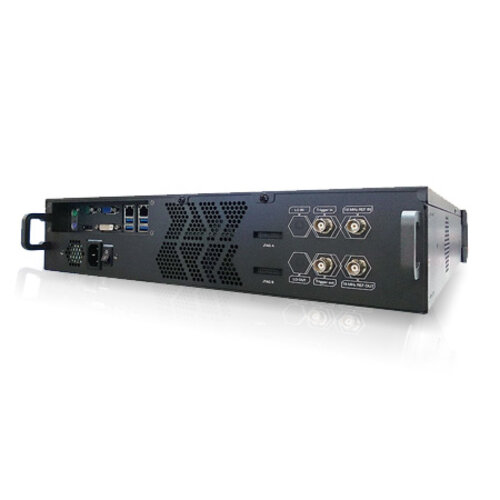

Introduction The MP5200 deploys state-of-the-art Software Designed Radio (SDR) architecture that consists of full extendibility to all current and future Wi-Fi / Bluetooth standards. By support LTE and other wireless standards in the future.
The MP5200 contains high quality VSA (Vector Signal Analyzer) & VSG (Vector Signal Generator) to provide a complete and versatile test environment. A highly integrated GUI is both intuitive and user-friendly which can run simple test of Wi-Fi / Bluetooth signal within few clicks. Supported measurement items include EVM, power, frequency error, IQ imbalance, 20dB Bandwidth, FM Demodulator Output, etc.
MP5200 comes with fully programmed test waveforms for Wi-Fi 802.11a/b/g/n/ac/ax & Bluetooth V.1.x/2.x/3.x EDR/4.xBLE/5.1 allowing immediate testing for DUTs. Moreover, a built-in waveform generator utility allows users to establish arbitrary Wi-Fi / Bluetooth test signals. Automatic mass production turnkey software is also available upon request
