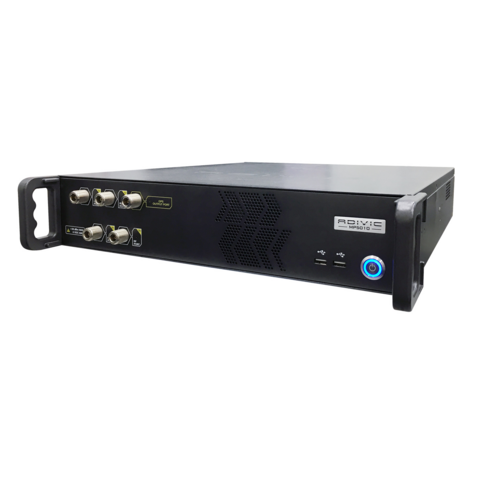

ADIVIC-MP5010 Wi-Fi/Bluetooth/GPS Tester
Key Features and Functions
- Wi-Fi, Bluetooth, GPS test capabilities in one box
- Supports Wi-Fi 802.11ac, 802.11a/b/g/n standards
- Supports Bluetooth V1.x/V2.x/V3.x EDR/BLE V4.x /V5.1
- Supports GPS 1-8 Channel simulator
- 4-port multi-site parallel test
- API available for production automation programming
- Turn-key production automation software support upon request
Applications: Consumer Mobile, Tablet, IOT (i.e. Automotive)
- Wi-Fi, Bluetooth, GPS test capabilities in one box
- High speed production tester for mobile communication devices
The MP5010 deploys state-of-the-art Software Designed Radio (SDR) architecture that consists of full extendibility to all current and future Wifi / Bluetooth/GPS standards. By upgrading firmware and hardware, it will be capable to support LTE and other wireless standards in the future.
The MP5010 contains high quality VSA (Vector Signal Analyzer) & VSG (Vector Signal Generator) to provide a complete and versatile test environment. A highly integrated GUI is both intuitive and user-friendly which can run simple test of wi-fi/ Bluetooth/GPS signal within few clicks. Supported measurement items include EVM, power, frequency error, IQ imbalance, 20dB Bandwidth, FM Demodulator Output, etc.
The MP5010 comes fully programmed test waveforms for wi-fi 802.11a/b/g/n/ac & Bluetooth V.1.x/2.x/3.x EDR/4.x BLE & 8 channel GPS simulator which allows immediate testing for DUTs. Moreover, a built-in waveform generator utility let users being to establish arbitrary Wi-Fi/Bluetooth testing signals& Set GPS signal location point arbitrarily. Automatic mass production turnkey software is also available upon request.
The MP5010 support up to 8 channel GPS simulator and allow to create arbitrary GPS location signal. Furthermore, it provides adjustable output power level for each every satellite. MP5010 Smartphone Connectivity Test Station MP5010 Smartphone Connectivity Test Station atellite.
The MP5010 deploys state-of-the-art Software Designed Radio (SDR) architecture that consists of full extendibility to all current and future Wifi / Bluetooth/GPS standards. By upgrading firmware and hardware, it will be capable to support LTE and other wireless standards in the future.
The MP5010 contains high quality VSA (Vector Signal Analyzer) & VSG (Vector Signal Generator) to provide a complete and versatile test environment. A highly integrated GUI is both intuitive and user-friendly which can run simple test of wi-fi/ Bluetooth/GPS signal within few clicks. Supported measurement items include EVM, power, frequency error, IQ imbalance, 20dB Bandwidth, FM Demodulator Output, etc.
The MP5010 comes fully programmed test waveforms for wi-fi 802.11a/b/g/n/ac & Bluetooth V.1.x/2.x/3.x EDR/4.x BLE & 8 channel GPS simulator which allows immediate testing for DUTs. Moreover, a built-in waveform generator utility let users being to establish arbitrary Wi-Fi/Bluetooth testing signals& Set GPS signal location point arbitrarily. Automatic mass production turnkey software is also available upon request.
The MP5010 support up to 8 channel GPS simulator and allow to create arbitrary GPS location signal. Furthermore, it provides adjustable output power level for each every satellite. MP5010 Smartphone Connectivity Test Station MP5010 Smartphone Connectivity Test Station atellite.
