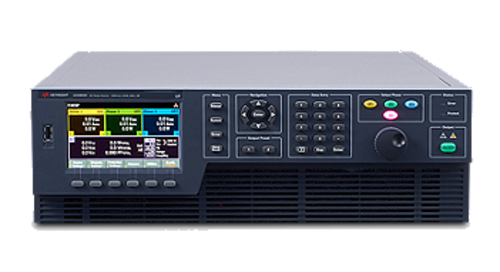

Keysight AC6903L AC power source 320 Vrms, 3 kVA, 550 Hz, 3 ?



Key Features and Specifications

AC6900 Series three-phase power sources provide a complete AC and DC power solution combing a reliable source and accurate power measurements

AC6900H offers frequencies up to 3 kHz. AC6900L up to 550 Hz

Output

  • choice of single, two, and three-wire connections
  • AC, DC, or AC plus DC mode
  • maximum AC voltage at 320 Vrms
  • maximum DC voltage at 452 V
  • frequency up to 5 kHz

Built-in tests

  • power line disturbance
  • output sequencing
  • harmonic analysis
  • built-in waveform generation

Protection

  • current protection, over, and under-voltage
  • output inhibit Programming
  • soft start / stop function
  • analog and digital control
  • LAN (LXI core), USB, and  optional GPIB

Product Number:

AC6903L

Manufacturer:

Keysight Technologies

Quantity:

Total
Unit price
base price
Stock
Call or email for delivery time

A Complete Three-Phase AC Power Solution

Keysight’s AC6900 Series AC power sources provide a complete AC and DC power solution by combining the capabilities of a multimeter, harmonic analyzer, and power analyzer in one instrument. You can easily produce DC power, either alone or as a DC offset to an AC waveform, in a compact form factor.

Easily Achieve Your Test Goals

The increasing demand for testing avionics devices such as air traffic management systems, sensors, and crewless aircraft systems demands a sophisticated AC and DC power solution. Test system designers are constantly looking for ways to optimize their avionic electronic systems.

A compact, high-performance AC power source with DC capability is ideal for achieving this goal. An avionics test software suite will help to accelerate pre-compliance testing that meets commercial and military standards.

Since your product will have to operate in the real world of unpredictable AC power, you need to design and verify its operation under a wide range of AC power inputs. For example, brownouts, dropouts, sags, and other irregularities are not unusual in many industries today.

You need to test using the compliance tests of the country where you plan to sell the product to ensure it meets their regulatory requirements for line voltages and frequencies.

The AC6900 Series AC power sources have the features you need to easily achieve your test goals in either a research and development environment or on the manufacturing test floor.

The five-inch LCD color display shows the main measurements for all phases simultaneously. The intuitive interface minimizes your team’s learning curve while making measurements. The multiple IO connectivity – LXI-LAN, USB, and GPIB provides flexible synchronization.
