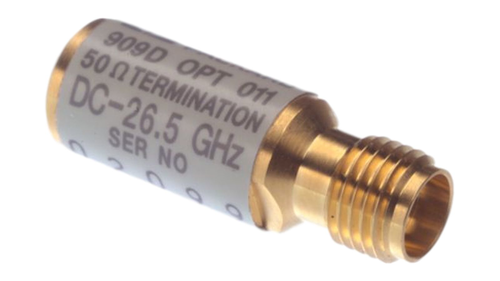

Keysight 909D Coaxial termination, DC-26.5 GHz, APC 3.5 mm connector

Superior RF Performance

• Maximum SWR at 3 GHz: 1.02
• Maximum SWR at 5 GHz: 1.036
• Maximum SWR at 26.5 GHz: 1.12
• Maximum Power: 2 W avg/ 100 W peak

The Keysight 909D is a precision, low-reflection dc to 26.5 GHz load for terminating a 50-ohm coaxial system in its characteristic impedance. It is intended for use as a calibration standard.
