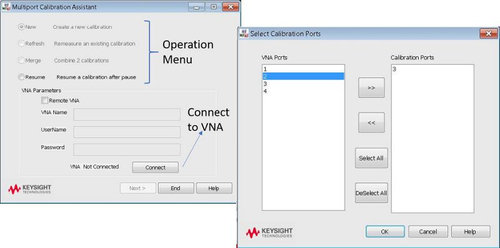

Keysight S96552B Multiport calibration assistant
Key Features
This application facilitates the calibration of massive multiport VNA by using electronic calibrator units (ECAL).
- Works with the E5080B and E5081A vector network analyzers.
- Facilitates the calibration of massive multiport VNA by using electronic calibration units (ECAL).
- Perform multiport calibration with a simple procedure
- Merge multiple calibrations to create one N-port calibration set
- Propagate the power calibration
- Perform operations on a local or remote VNA
Additional Documents:
The S96552B provides a tool to flexibly create and manage calibration sets for multiport measurements. For example, two calibration sets with independent test ports can be combined as one calibration set with a greater number of test ports. The software also offers a way to re-calibrate using a certain set of test ports to refresh the calibration set.
At least one ECal module is required for the operation of S96552B.
The S96552B provides a tool to flexibly create and manage calibration sets for multiport measurements. For example, two calibration sets with independent test ports can be combined as one calibration set with a greater number of test ports. The software also offers a way to re-calibrate using a certain set of test ports to refresh the calibration set.
At least one ECal module is required for the operation of S96552B.
