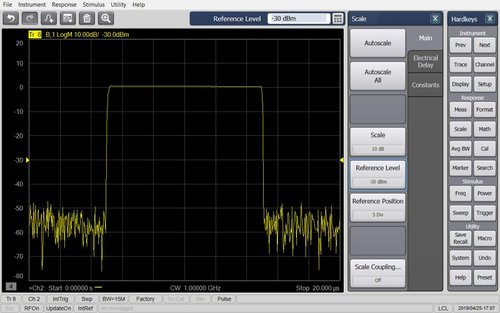

Keysight S96025B Basic pulsed-RF measurements for E5080B
Key Features
Enables internal pulse generators to control the internal pulse modulators and provides an integrated pulse application that uses the wideband-detection method. Requires hardware Option 021 pulse modulator hardware.
- Works with E5080B
- Enables internal pulse generators to control the internal pulse modulators
- Provides an integrated pulse application that uses the wideband-detection method
- Point-in-pulse measurements with pulse width as narrow as 1 us
- Pulse-profile measurements with 40-ns minimum timing resolution
- Requires hardware Option 021 on the E5080B ENA
Documents and Software Solutions:
Using the built-in pulse modulators, the E5080B ENA is a complete pulsed-RF measurement solution that eliminates the need for external test sets and pulse generators. S96025B also controls external pulse generators and modulators and can synchronize to external master pulses. Use the application I/O connector on the rear panel of the analyzer if using external master pulses or external pulse modulators.
Using the built-in pulse modulators, the E5080B ENA is a complete pulsed-RF measurement solution that eliminates the need for external test sets and pulse generators. S96025B also controls external pulse generators and modulators and can synchronize to external master pulses. Use the application I/O connector on the rear panel of the analyzer if using external master pulses or external pulse modulators.
