Keysight S96007B Automatic fixture removal
Key Features
Automatic fixture removal (AFR), is the easiest way to remove fixture effects from non-coaxial device measurements.
- Works with E5080B ENA and E5081A ENA-X
- Easiest way to remove fixture effects from non-coaxial device measurements
- Extract fixture S-parameters from 2x thru or one-port measurements

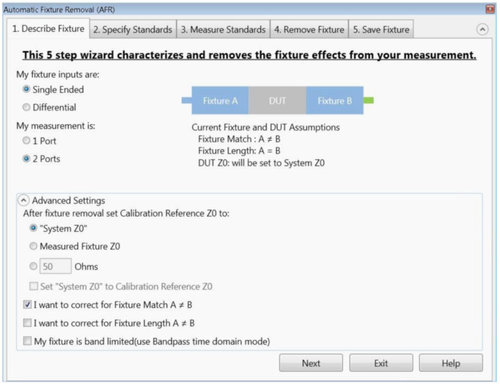

- Step-by-step wizard to characterize your fixture and remove it from your measurements
- De-embed files can be saved in a variety of formats for later use
Documents and Software Solutions:
Many devices do not have coaxial connectors and are put in fixtures in order to measure them in a coaxial environment. Accurately removing the effects of the fixture is required to get a good measurement of the device under test (DUT). The automatic fixture removal adds a powerful application wizard to guide you through characterizing a fixture and removing it from the measurement.
Many devices do not have coaxial connectors and are put in fixtures in order to measure them in a coaxial environment. Accurately removing the effects of the fixture is required to get a good measurement of the device under test (DUT). The automatic fixture removal adds a powerful application wizard to guide you through characterizing a fixture and removing it from the measurement.
