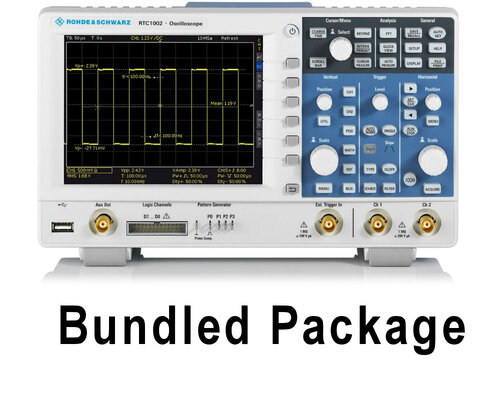

R&S RTC1K-COM2 Bundle - Digital 2 channel oscilloscope, 300 MHz includes RTC-PK1 Application Bundle (contains RTC-K1, 2 and 3 (I2C/SPI, UART/RS232 and CAN/LIN Trigger&Decode), RTC-B6(ARB Generator))
Key Features and Functions
- 2 analog channels, 8 digital channels (mixed signal) with option RTC-B1 (incl. Digital probe RT-ZL03)
- 300 MHz bandwidth
- Sampling rate 1.25 Gsample, memory depth 1 Msample, 2 Msample interleaved
- Including AWG, MSO, I2C, SPI, UART / RS-232 / RS-422 / RS-485, CAN / LIN
RTC1002 Oscilloscope, 2 channel, USB, LAN, up to 300 MHz BW, 2 GSa/s, 1 MPts
The RTC1000 compact digital oscilloscope is available with bandwidths up to 300 MHz (upgrade) and is characterized by a high waveform update rate and vertical sensitivity. The very quiet device offers a sampling rate of 1 Gsample / s with a memory depth of 1 Msample. Hardware-supported signal triggering and decoding with the most common protocols (I²C, SPI, UART, CAN or LIN) is integrated in the RTC1000 for communication between embedded systems and the environment. This option can be activated at any time by purchasing vouchers. The integrated pattern generator, which generates protocol telegrams with speeds of up to 50 Mbit / s, is of interest to embedded users. This gives developers the opportunity to freely program individual signal patterns in addition to predefined messages for the supported serial protocols. A built-in, three-digit digital voltmeter makes work easier for service technicians in particular. With the RTC1000, voltage measurements can be carried out on both analog channels with two measured values at the same time. A function generator that generates various types of signals with frequencies up to 50 kHz is of interest for education. Pupils, trainees or students learn all measuring tasks on these basic types. In 'Education Mode', the convenience functions can be switched off. Thanks to the 128 k measuring points, the RTC1000 keeps up with its analysis functions in the frequency domain with significantly larger oscilloscopes. The display of the time signal, measurement window and analysis area of the FFT as well as the result on a screen facilitates measurement of the spectra.
RTC1002 Oscilloscope, 2 channel, USB, LAN, up to 300 MHz BW, 2 GSa/s, 1 MPts
The RTC1000 compact digital oscilloscope is available with bandwidths up to 300 MHz (upgrade) and is characterized by a high waveform update rate and vertical sensitivity. The very quiet device offers a sampling rate of 1 Gsample / s with a memory depth of 1 Msample. Hardware-supported signal triggering and decoding with the most common protocols (I²C, SPI, UART, CAN or LIN) is integrated in the RTC1000 for communication between embedded systems and the environment. This option can be activated at any time by purchasing vouchers. The integrated pattern generator, which generates protocol telegrams with speeds of up to 50 Mbit / s, is of interest to embedded users. This gives developers the opportunity to freely program individual signal patterns in addition to predefined messages for the supported serial protocols. A built-in, three-digit digital voltmeter makes work easier for service technicians in particular. With the RTC1000, voltage measurements can be carried out on both analog channels with two measured values at the same time. A function generator that generates various types of signals with frequencies up to 50 kHz is of interest for education. Pupils, trainees or students learn all measuring tasks on these basic types. In 'Education Mode', the convenience functions can be switched off. Thanks to the 128 k measuring points, the RTC1000 keeps up with its analysis functions in the frequency domain with significantly larger oscilloscopes. The display of the time signal, measurement window and analysis area of the FFT as well as the result on a screen facilitates measurement of the spectra.
