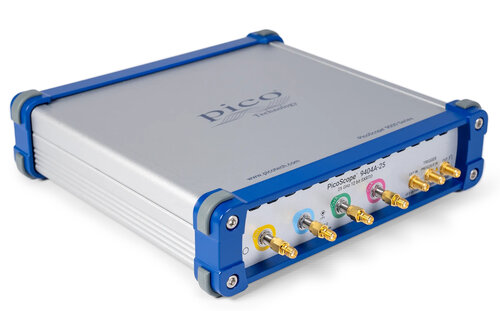

PicoScope 9404-05 5 GHz sampler-extended real-time oscilloscope

additional images:

PicoScope 9400 Series is the first of a new class of oscilloscopes that combine the benefits of real-time sampling, equivalent-time sampling and high analog bandwidth.

Key specifications:

  • SXRTO (sampler-extended real-time oscilloscope)
  • 9404-05: 5 GHz bandwidth, 70 ps transition time and 1 TS/s (1 ps resolution) equivalent-time sampling
  • Pulse, eye and mask testing down to 45 ps and up to 11 Gb/s
  • Four 12-bit 500 MS/s ADCs
  • Intuitive and configurable touch-compatible Windows user interface
  • Comprehensive built-in measurements, zooms, data masks and histograms
  • ±800 mV full-scale input range into 50 ohms
  • ±10 mV/div to ±0.25 V/div ranges provided by digital gain
  • Up to 250 kS trace length, shared between channels

Product Number:

PICO-PQ181

Manufacturer:

Picotech

Quantity:

Total
Unit price
base price
Stock
Typically on stock
quick delivery

The PicoScope 9400 Series SXRTO oscilloscopes have four input channels up to 16 GHz with market-leading ADC, timing and display resolutions for accurately measuring and visualizing high-speed analog and data signals. They are ideal for capturing pulse and step transitions down to 22 ps, impulses down to 45 ps and clocks and data eyes to 11 Gb/s. Most high-bandwidth applications involve repetitive signals or clock-related data streams that can be readily analyzed by equivalent-time sampling (ETS). The SXRTO quickly builds ETS, persistence displays and statistics. It has a built-in full-bandwidth trigger on every channel, with pretrigger ETS capture to well above the Nyquist sampling rate. There are three acquisition modes—real time, ETS and roll—all capturing at 12-bit resolution into a shared memory of 250 kS.

The PicoSample 4 software is derived from our existing PicoSample 3 and PicoScope 9000 products, which together represent over ten years of development, customer feedback and optimization.

The high-resolution display can be resized to fit any window, filling 4k and even larger monitors or arrays of monitors. Four independent zoom channels can show you different views of your data down to a resolution of 1 ps. Most of the controls and status panels can be shown or hidden according to your application, allowing you to make optimal use of the display area.

The oscilloscope has a 2.5 GHz direct trigger that can be driven from any input channel, and a built-in prescaler can extend the trigger bandwidth to 5 GHz.
