LN-Course - Electronics 6: Power semiconductor devices
Includes:

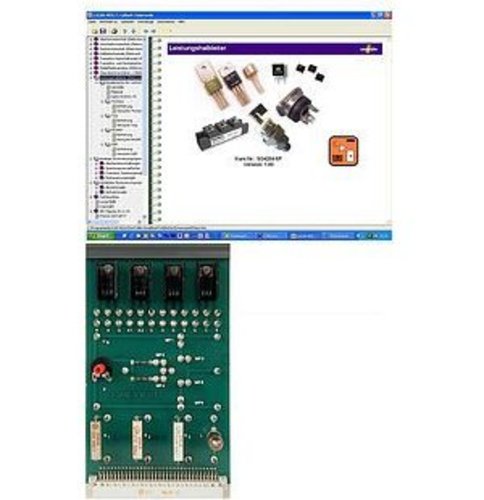

- 1 Experiment card with various power electronics components and load connected via 2-mm sockets
- CD-ROM with Labsoft browser and course software
Course contents:
- Introduction to the design and function of thyristors
- Introduction to the design and function of triacs
- Introduction to the design and function of MOSFETs
- Introduction to the design and function of IGBTs
- Investigation of a thyristor circuit by measurement: load response, conducting, non-conducting and transmission response
- Investigation of a triac circuit by measurement: load response, conducting, non-conducting and transmission response
- Determining the threshold voltage of a MOSFET by measurement
- Investigating the switching and power response of a MOSFET
- Determining the threshold voltage of an IGBT by measurement
- Investigating the switching and power response of an IGBT
- Course duration 2 h approx.
UniTrain multimedia courses in electronics provide an introduction to the fundamentals of modern electronics with the help of numerous experiments on components and simple circuits. Students taking the course are familiarised with the principles, limitations, properties and basic circuits for various semiconductor components and utilise them in various applications. Many experiments reinforce the familiarity with measuring instruments, particularly the oscilloscope. Characteristics are recorded and changes in voltage and current are observed, evaluated and explained.
