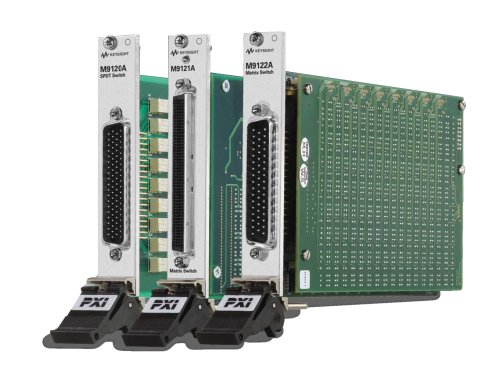

Keysight M9120A PXI Matrix Switch: 4x34, 2-wire, 125VDC/2A, EM Relays

Application

  • Connect multiple instruments to multiple points for automated test applications

Functionality

  • 4x32 high-power, 2-wire matrix
  • 100Vrms
  • 2A switch/carry current
  • 60W max power

Performance characteristics

  • Durable 60W armature switches

Product Number:

M9120A

Manufacturer:

Keysight Technologies

Quantity:

Total
Unit price
base price
Stock
Call or email for delivery time

The M9120A high-density matrix offers higher voltage switching of multiple channels in a single instance. Any row can be connected to any column, making it ideal for routing instrument signals to the device under test. This 2-wire switch matrix provides the durable armature switches allowing multiple channels to be connected at one time, up to 60W per channel. The 4-wire wide bus can be used to route signals between test instruments and the device under test. Choose from the durable connector block or standard cable connections.

Software drivers support most common programming environments such as Visual Studio®, C, C++, C#, Visual Basic, MATLAB® and LabVIEW™. The high-quality switches with durable connections ensure trustworthy measurements. Installation and configuration are fast and easy with the Keysight Connection Expert and soft front panels.

Visual Studio is a registered trademark of Microsoft Corporation in the United States and/or other countries.
MATLAB is a U.S. registered trademark of The Math Works, Inc.
LabVIEW is a registered trademark of National Instruments.
