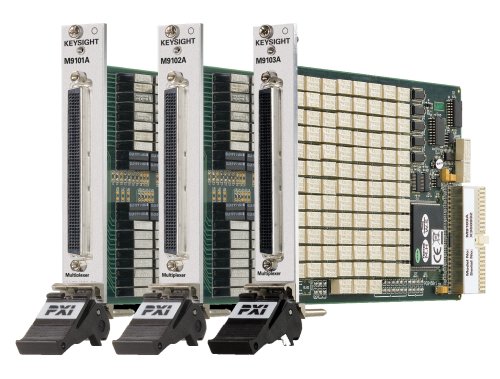

Keysight M9102A PXI High Density Multiplexer: 128-ch, 1-wire, 100 VDC/1 A, Reed Relays

Application

  • Switch many different points to a single instrument for data acquisition and automated test applications

Functionality

  • 128-channel, high-density 1-wire switch multiplexer
  • 100Vrms
  • 0.5A/1.0A switch/carry current
  • 10W max power

Performance characteristics

  • High-speed 500 usec reed relays
  • Break-before-make switch closures

Product Number:

M9102A

Manufacturer:

Keysight Technologies

Quantity:

Total
Unit price
base price
Stock
Call or email for delivery time

The M9102A is a high-density, 128-channel multiplexer in a single PXI module. This module will route many different channels to a single point. The switches operates in a break-before-make mode, ensuring no two points are connected at the same time. This module is ideal for routing multiple analog signals to a measurement device in an automated test environment (ATE) or data acquisition systems. This 1-wire multiplexer has a common ground and features high speed, long-life reed relays capable of switching up to 100Vrms, with up to 10W of power. Connection options include the durable connector block or the standard cable connections.

Software drivers support most common programming environments such as Visual Studio®, C, C++, C#, Visual Basic, MATLAB® and LabVIEW™. The high-quality switches with durable connections ensure trustworthy measurements, and, with the high-speed reed relays, product throughput increases. Installation and configuration are fast and easy with Keysight Connection Expert and soft front panels.

Visual Studio is a registered trademark of Microsoft Corporation in the United States and/or other countries.
MATLAB is a U.S. registered trademark of The Math Work s, Inc.
LabVIEW is a registered trademark of National Instruments.
