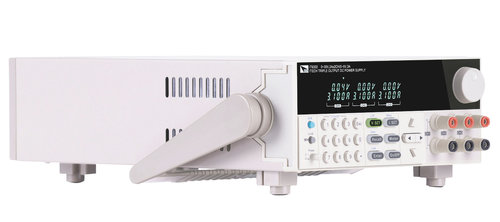

ITECH IT6302 Triple Output DC PSU, 2 Channels 90W, 30V, 3A; 1 Channel 15W, 5V, 3A - Optional USB/RS232 interface

Key Features and Functions

  • 3 independent channels
  • Total power 195 W
  • Output voltage: 2 x 0-30 V, 1 x 0-5 V
  • Current: 2 x 0-3 A, 1 x 0-3 A
  • Readback of current and voltage
  • Parallel and series connection of channel 1 and 2
  • Extensive protection
  • High accuracy and resolution

Connectivity:

  • Optional RS-232 and USB (IT-E121 and IT-122)
  • SCPI communication protocol

Documents and Software Solutions:

Price

kr 4.616*
* excluding VAT free shipping (Denmark)

Product Number:

IT6302

Manufacturer:

ITECH

Quantity:

Total
Unit price
base price
Stock
Typically on stock
Quick delivery

IT6302 series programmable 3 channel power supply provides three independent outputs. Series and parallel operating mode can be used to double improve voltage and current output capability.High resolution and high accuracy,ensure your accurate measurement.

High-definition VFD display can display and set the voltage of 3 channels at one time without switching.It greatly simplifies the complex operation of traditional 3 channels power supplies.'

DC Output Ratings:

  • Output voltage: 2 x 0-30 V, 1 x 0-5 V
  • Resolution: 10 mV
  • Current: 2 x 0-3 A, 1 x 0-3 A
  • Resolution: 1 mA

Setup Accuracy:

  • Voltage: <0.06% + 2 mV
  • Current: <0.2% + 10 mA
Description
Additional Informations
Reviews
Query on the Item
Do you have any questions on this item?
Your E-mail Address
My Question:
Please retype the letters shown here
captcha
Description
Reviews
Query on the Item

IT6302 series programmable 3 channel power supply provides three independent outputs. Series and parallel operating mode can be used to double improve voltage and current output capability.High resolution and high accuracy,ensure your accurate measurement.

High-definition VFD display can display and set the voltage of 3 channels at one time without switching.It greatly simplifies the complex operation of traditional 3 channels power supplies.'

DC Output Ratings:

  • Output voltage: 2 x 0-30 V, 1 x 0-5 V
  • Resolution: 10 mV
  • Current: 2 x 0-3 A, 1 x 0-3 A
  • Resolution: 1 mA

Setup Accuracy:

  • Voltage: <0.06% + 2 mV
  • Current: <0.2% + 10 mA
